Chain Bucket Skimmer CBP・CBS

Features of 2 Type

CBP

• It has a collection capacity that is approximately 1.6 times that of CBS*. It is efficiently collected with a unique propeller and bucket shape.
• Prevents the coolant from spoiling and from formation of odor
• YIt is also effective for low-viscosity levitation oil and liquids heated by cleaning machines.
• Compared to the belt type, there are fewer consumables and it has excellent durability.

CBS

• Compared to the belt type, the recovery capacity is about seven times*.
• Prevents the coolant from spoiling and from formation of odor.
• The unique bucket shape efficiently recovers levitating oil and scum.
• It is also effective for low-viscosity flotation oil and liquids heated by cleaning machines.

*The recovery capacity is based on our experimental data and does not guarantee the effect.

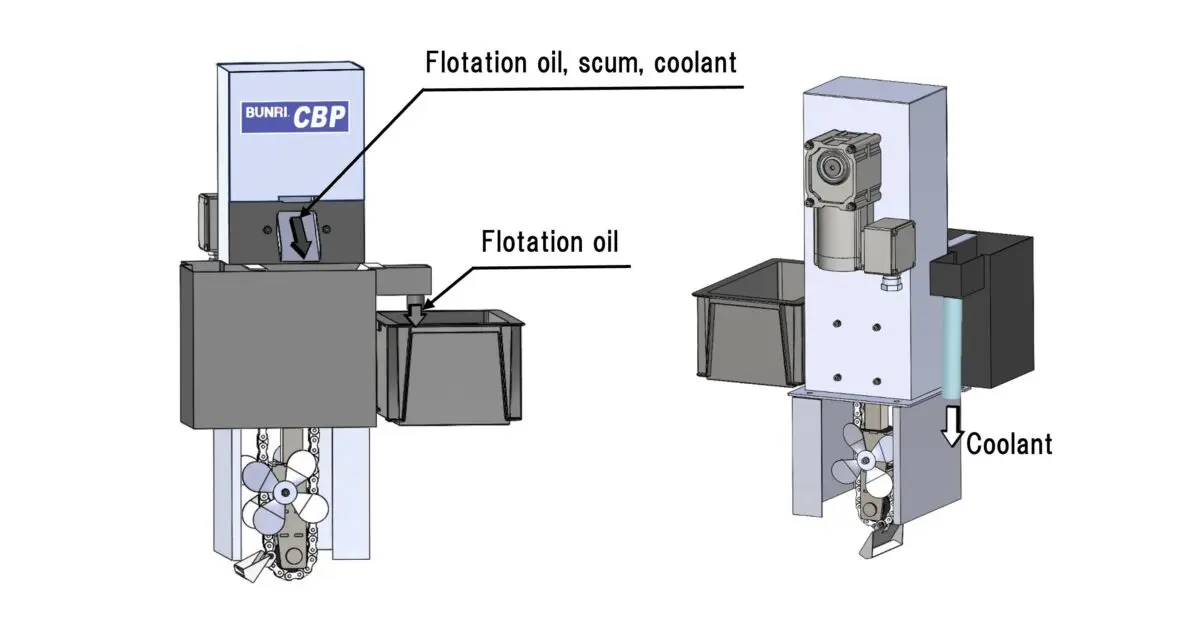

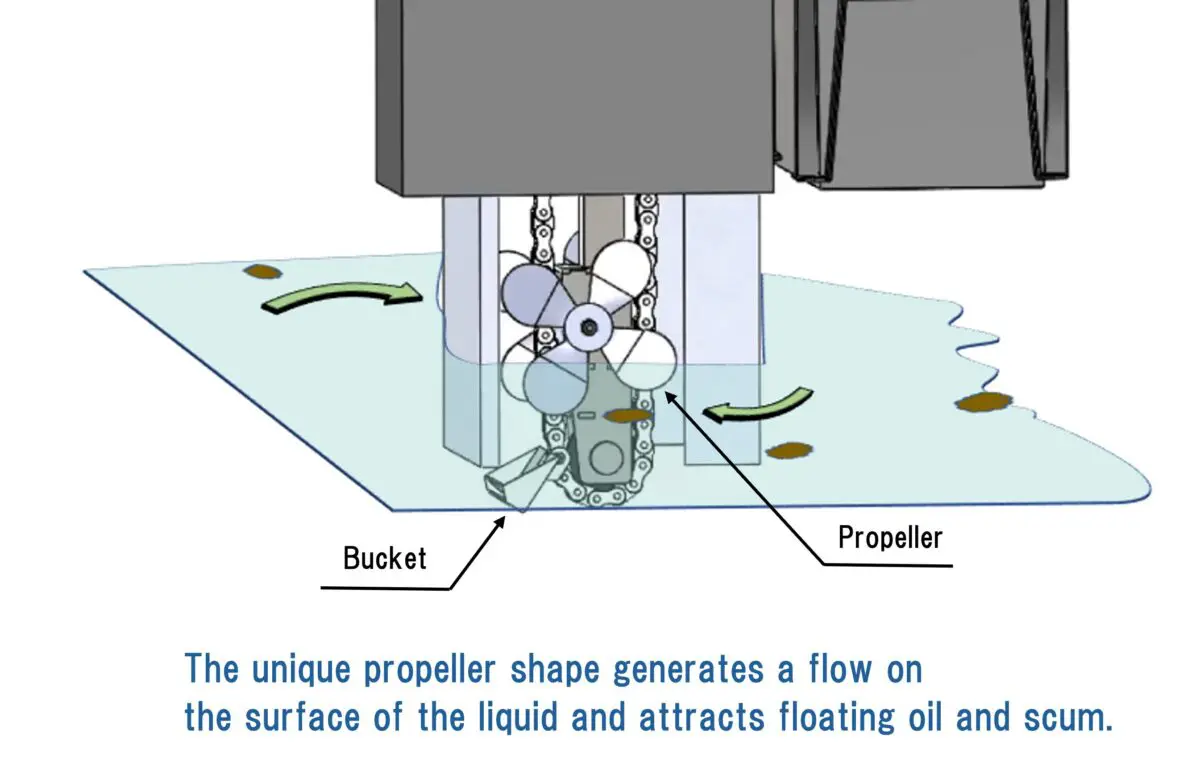

Mechanism CBP

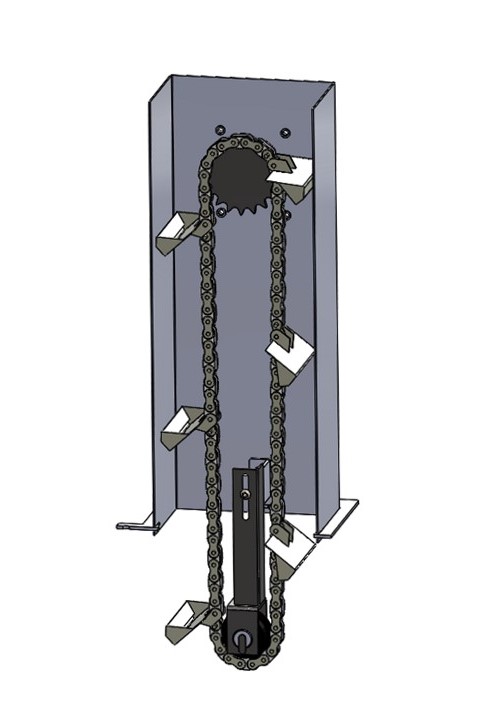

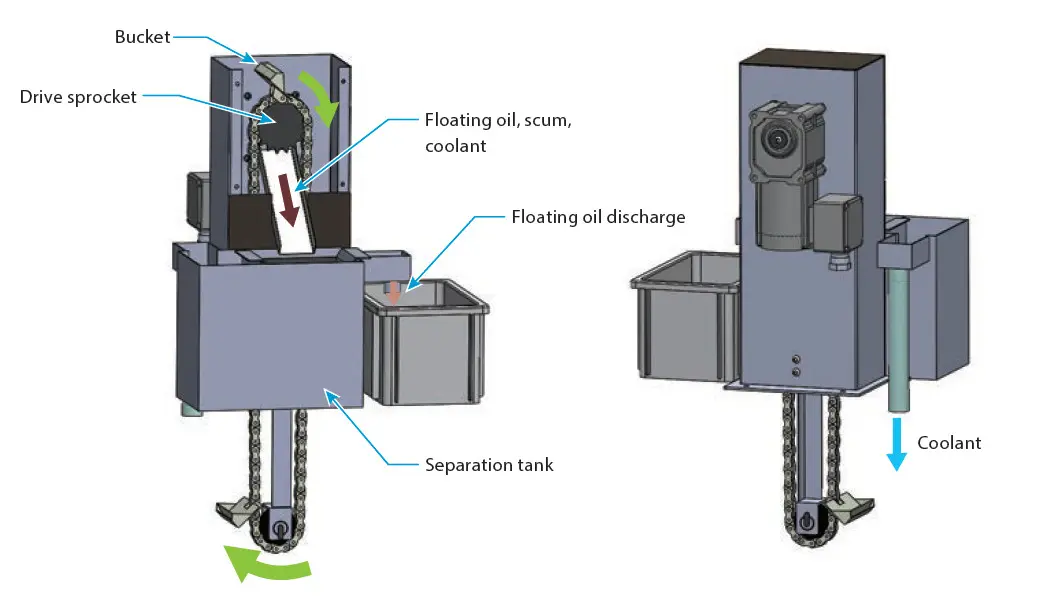

Mechanism CBS

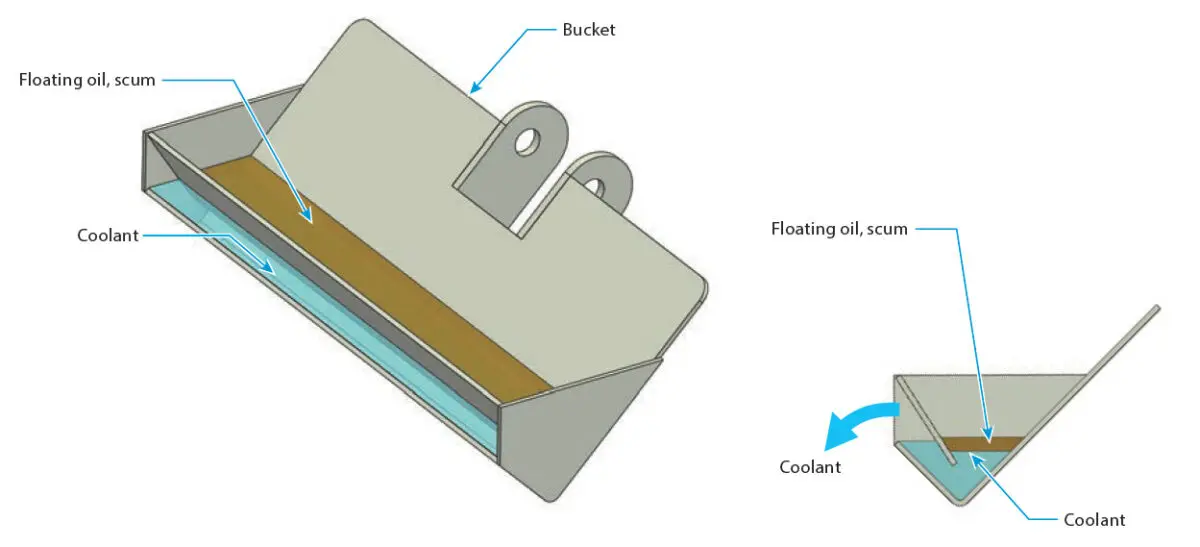

1. The unique bucket shape collects oil and scum floating on the liquid surface of the coolant.
2. The collected coolant, oil, and scum are discharged from the chute of the main body to the separation tank.

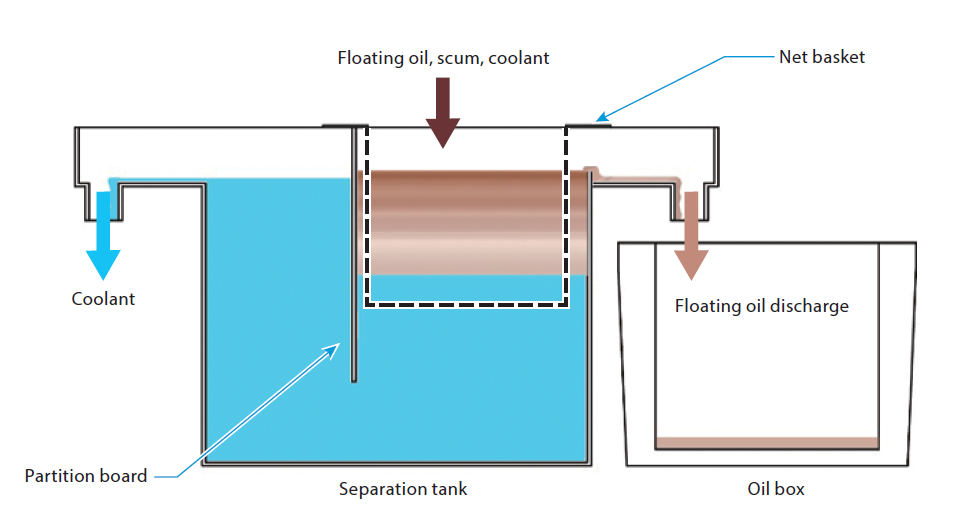

3. Coolant is separated from scum/oil in the separation tank using the difference in specific gravity between the coolant and scum/oil. Then, the oil is discharged to the oil box, and the coolant is returned to the tank again.

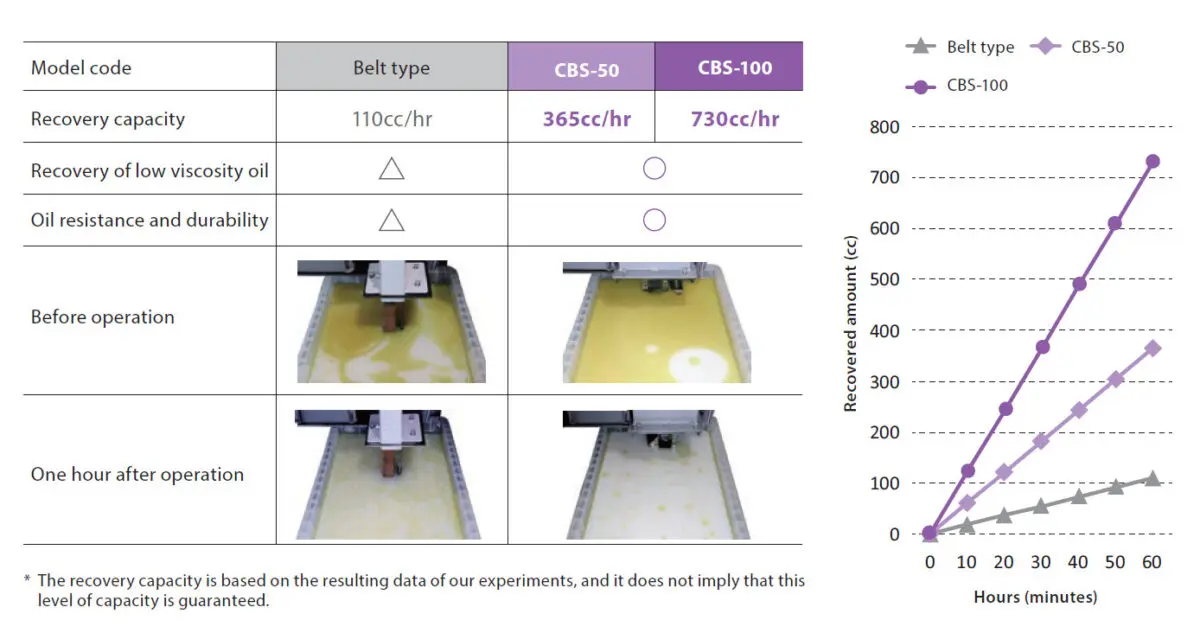

Comparison with belt system

Specifications

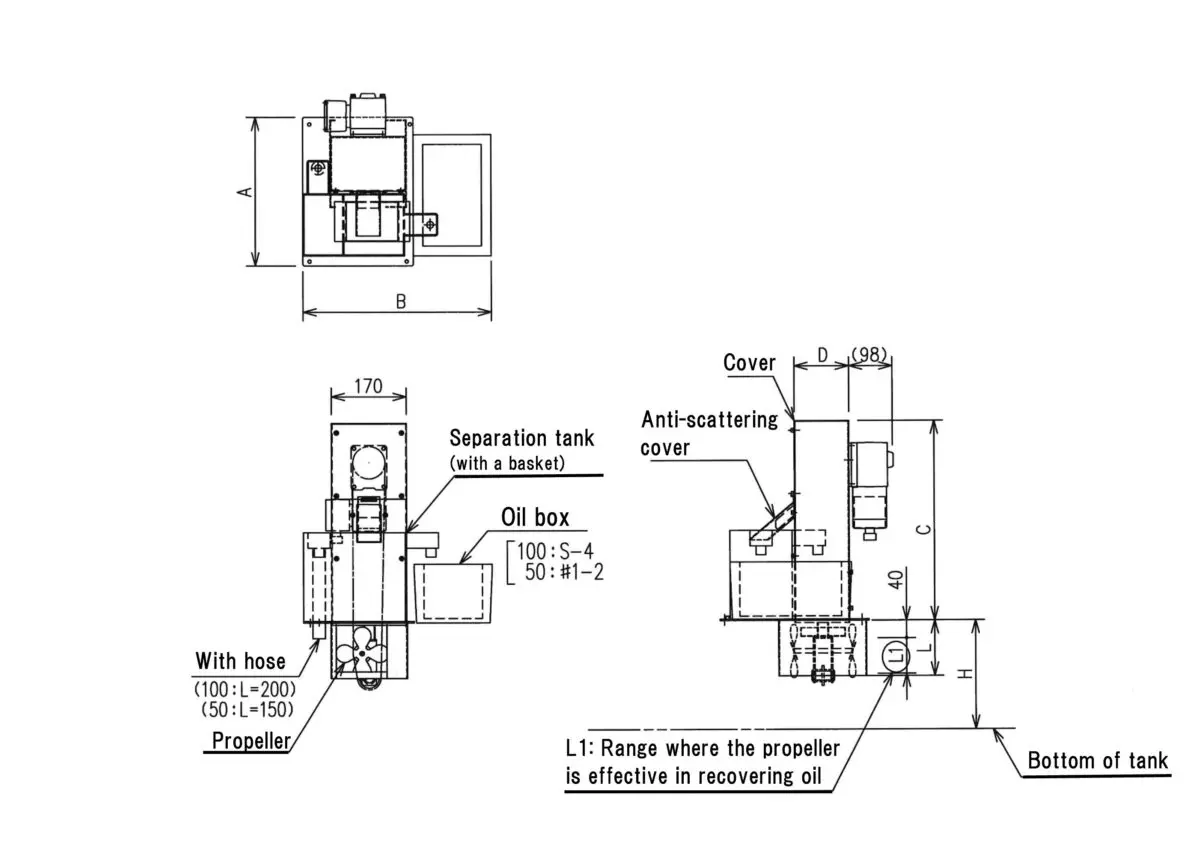

Dimensional drawing　CBP-50・CBP-100y

Dimension table CBP

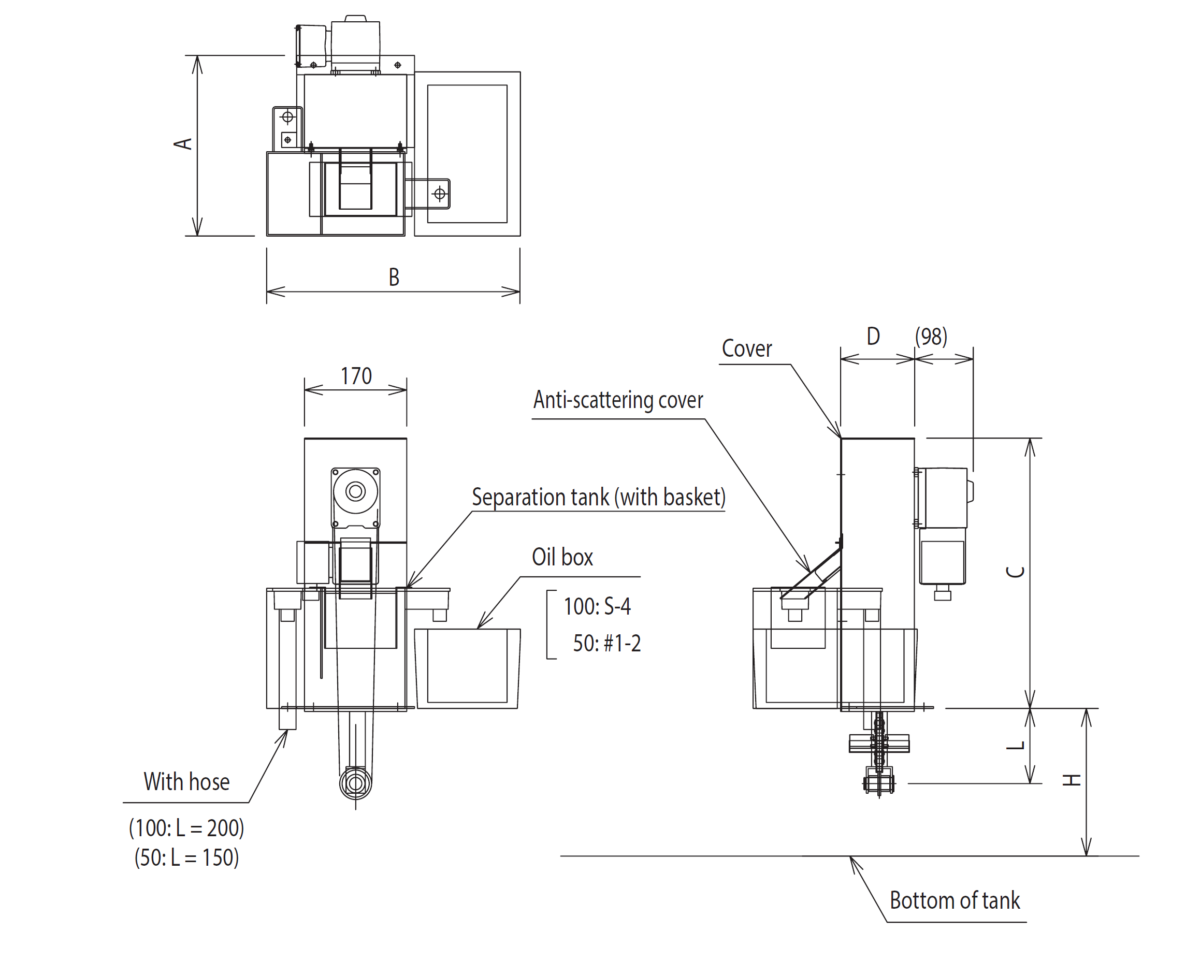

Dimensional drawing　CBS-50・CBS-100

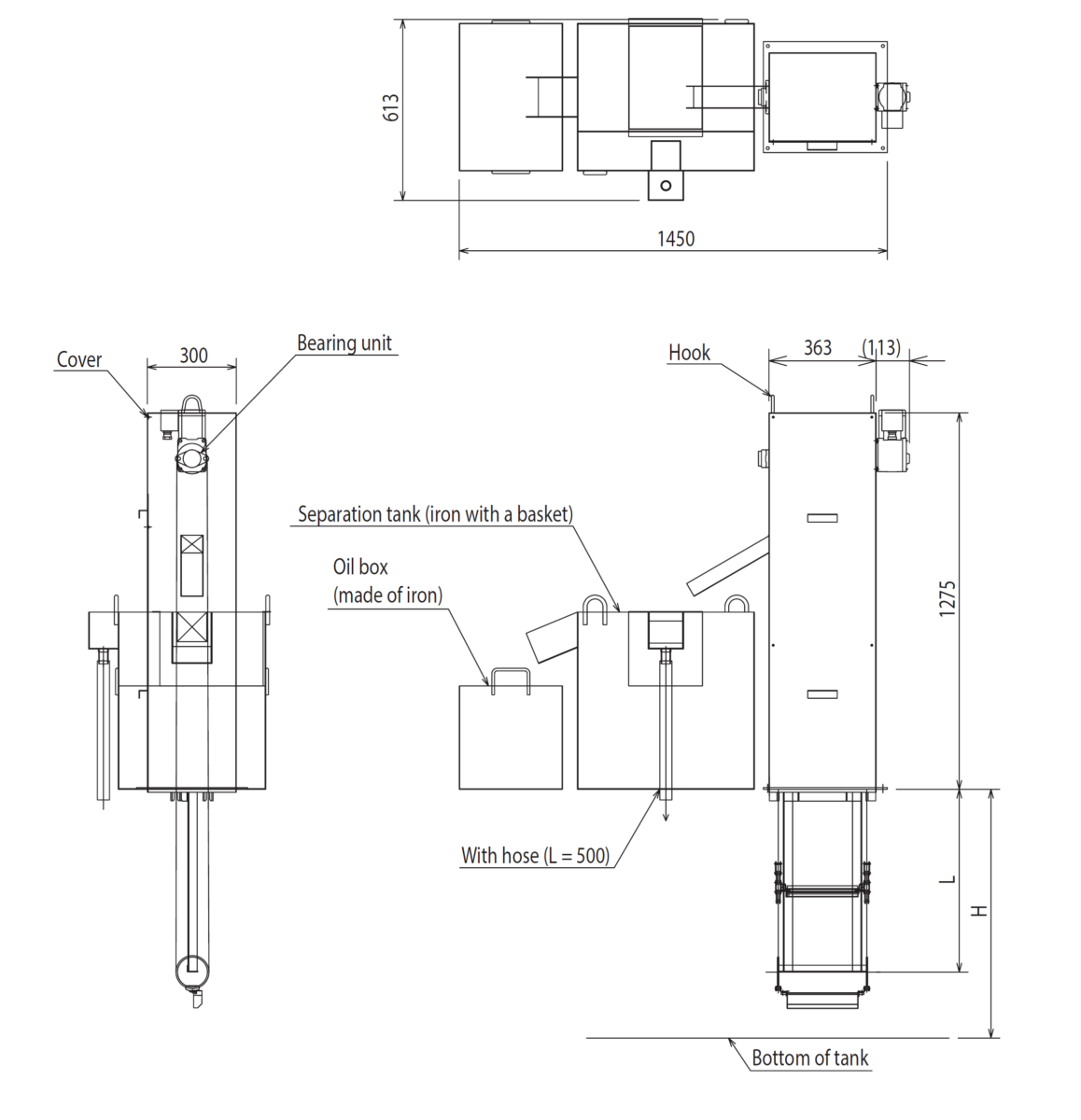

Dimensional drawing　CBS-250y

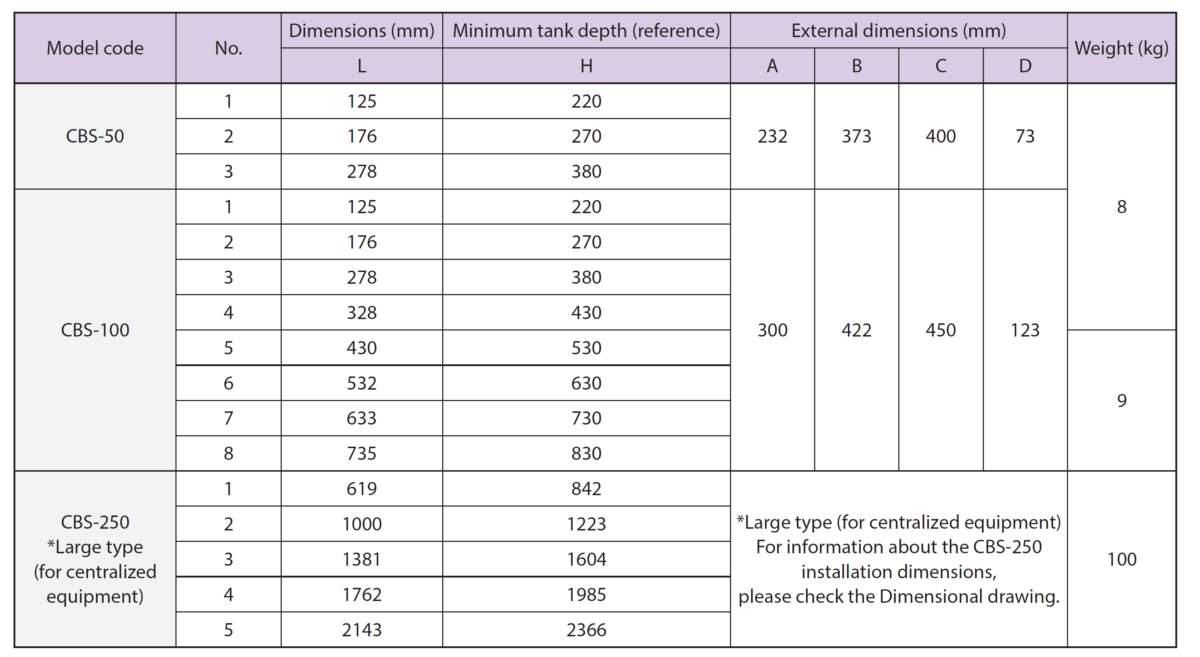

Dimension table CBS

Recovery capacity

• CBP-50　 365cc/hr
• CBP-100　 730cc/hr



• CBS-50　 365cc/hr
• CBS-100　 730cc/hr
• BS-250　 2250cc/hr

* The recovery capacity is based on the resulting data of our experiments, and it does not imply that this level of capacity is guaranteed.

Product weight

• CBP-50-1 to 3　 Approx.12kg
• CBP-100-1 to 3　Approx.12kg



• CBS-50-1 to 3　 Approx. 8 kg
• CBS-100-1 to 4　Approx. 8 kg
• CBS-100-5 to 8　Approx. 9 kg
• CBS-250　 Approx. 100 kg

* The product weight varies depending on the specifications, options, etc.

Paint color

CBP-50/CBP-100

• Main body Medium metallic
• Cover Dark gray metallic

CBS-50/CBS-100

• Main body Medium metallic
• Cover Dark gray metallic

CBS-250

• Medium metallic

* For information about the specified color, please consult us.

Geared motor

• CBP-50　 15W
• CBP-100　15W



• CBS-50　 15W
• CBS-100　15W
• CBS-250　40W

Option

• Add bucket count

* Please contact us for details.

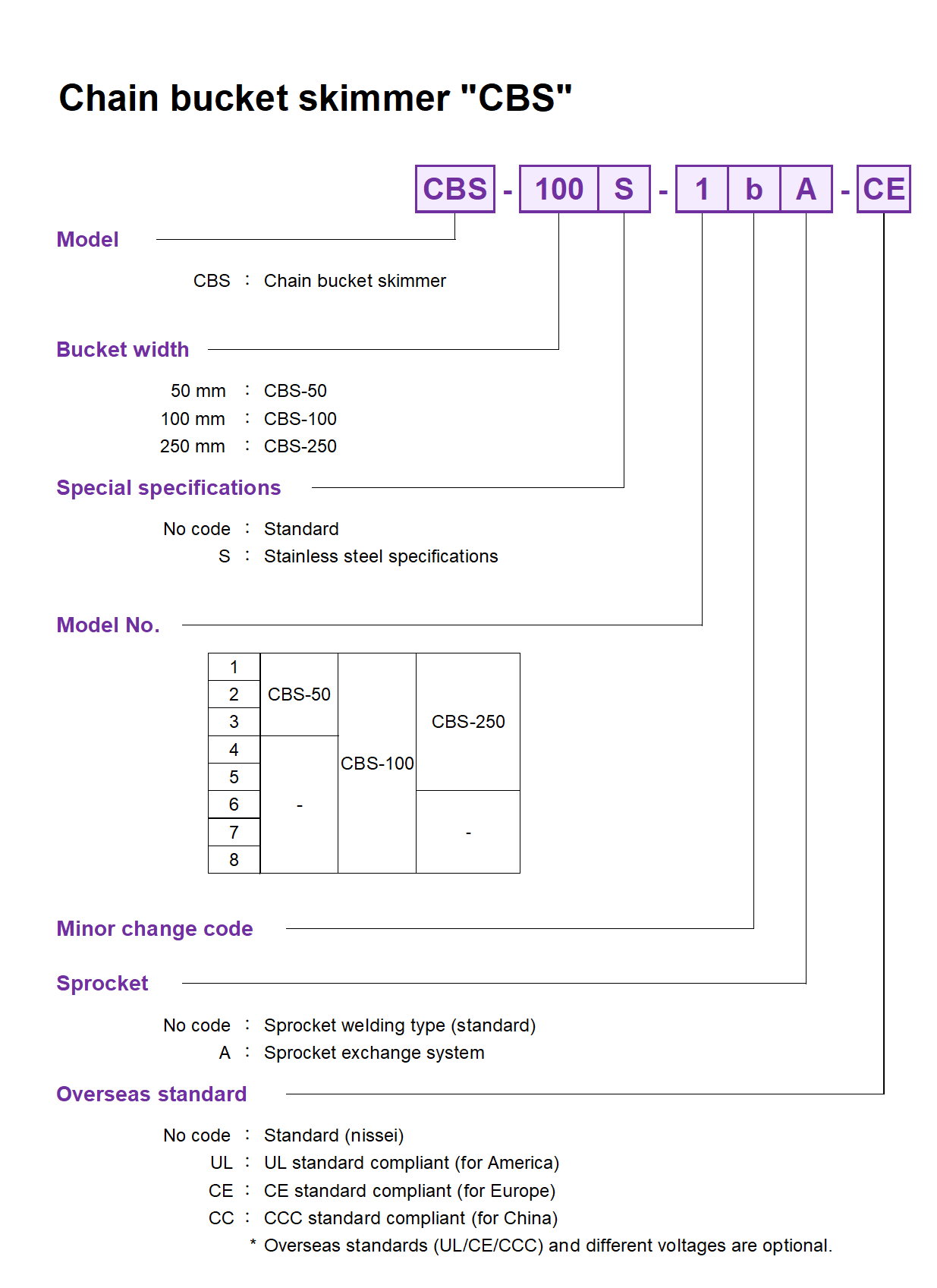

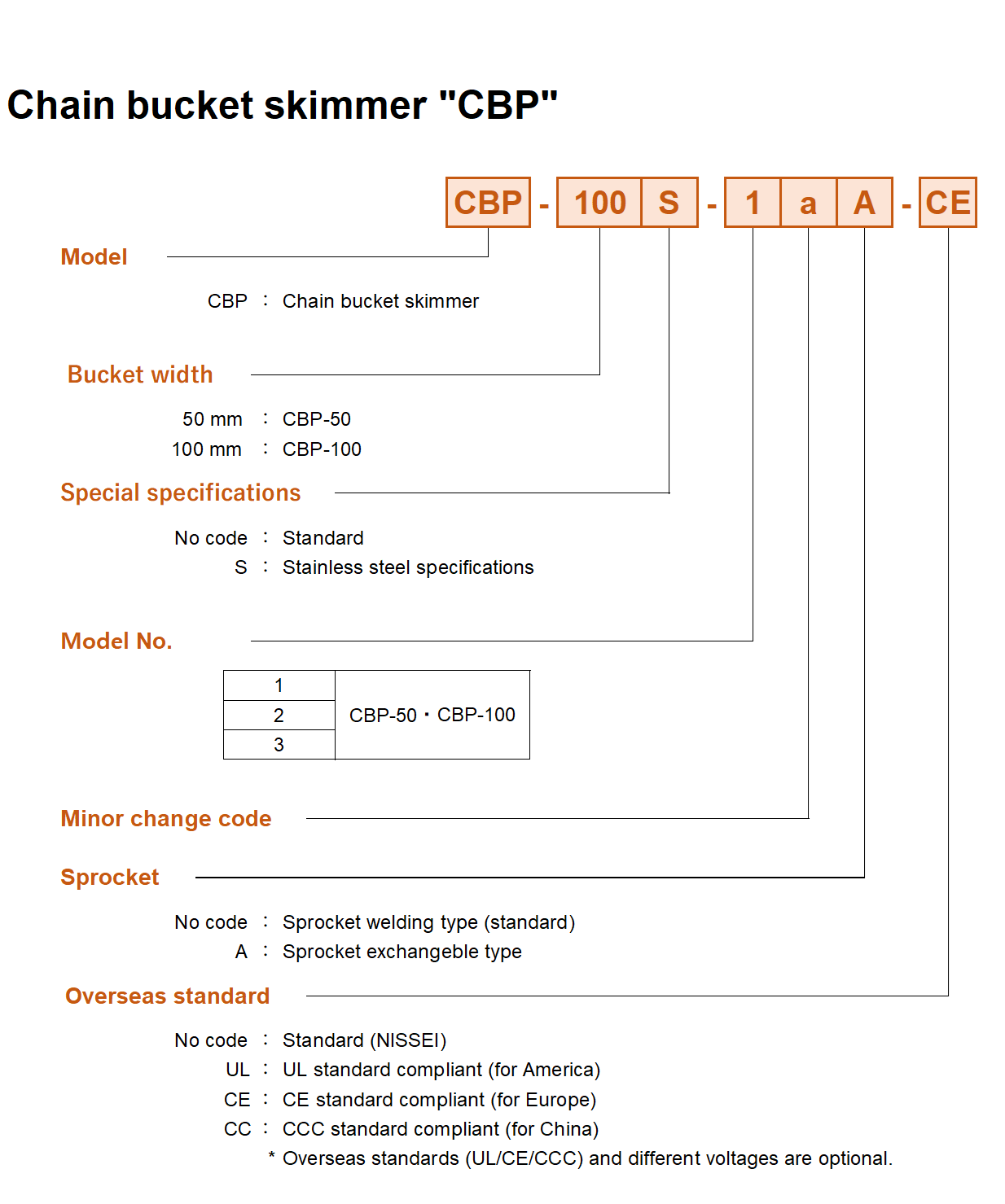

Model code

Product Photo (Example)

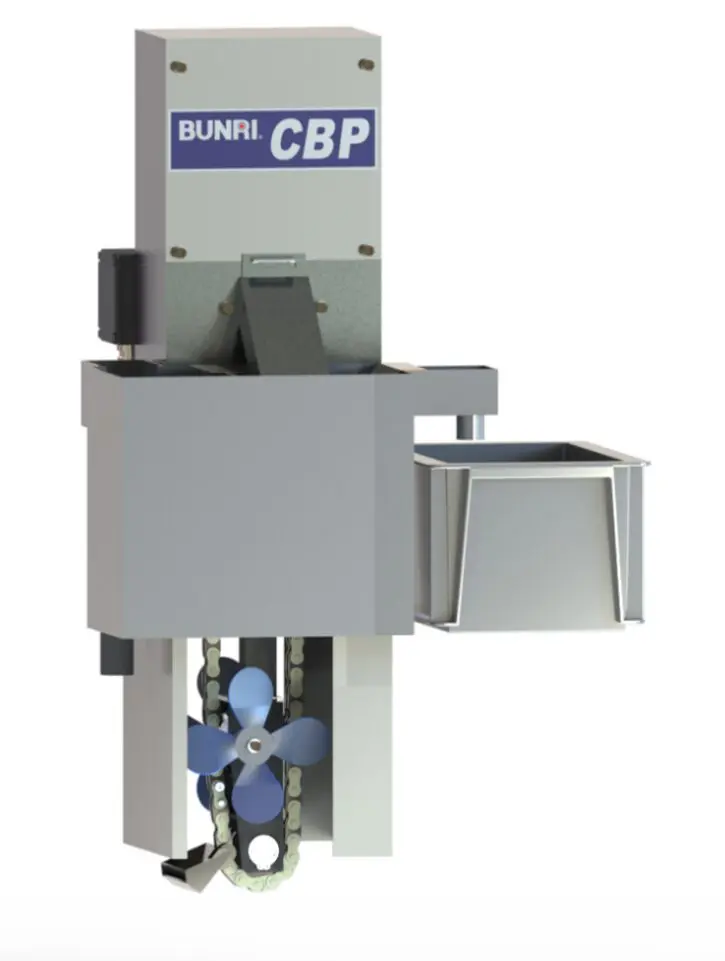

CBP

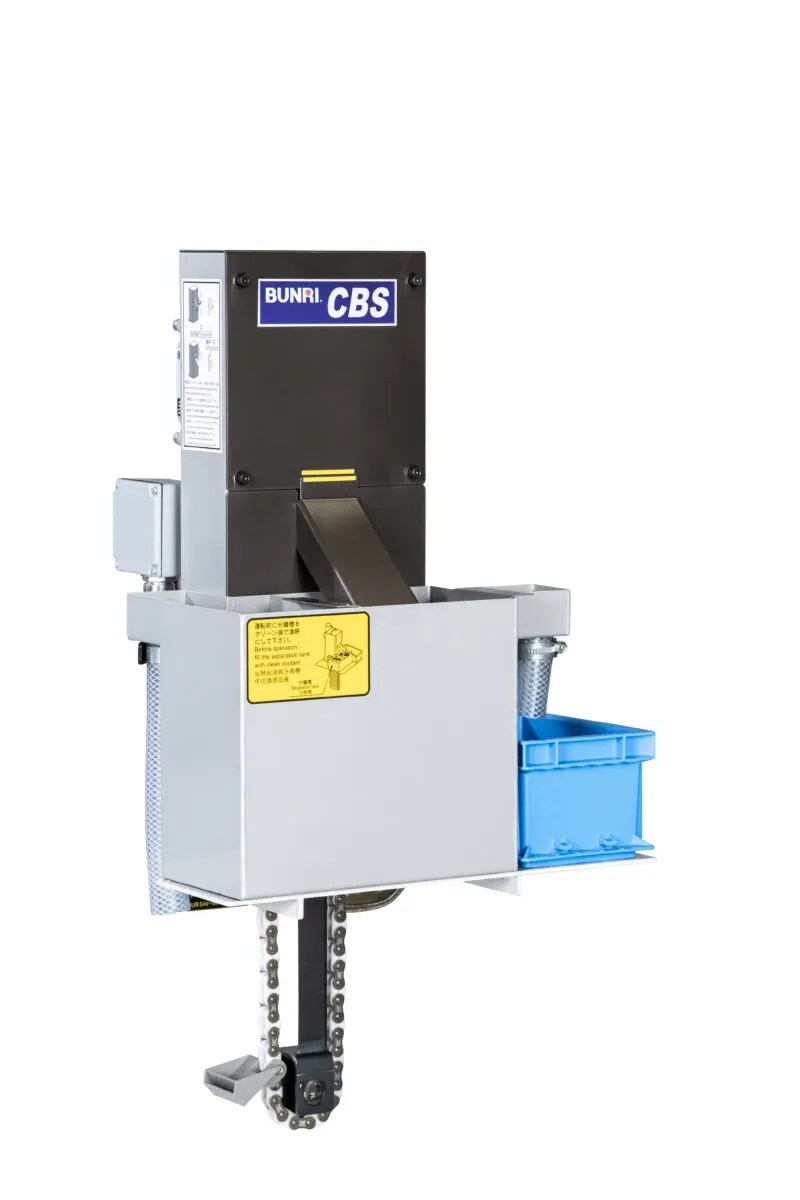

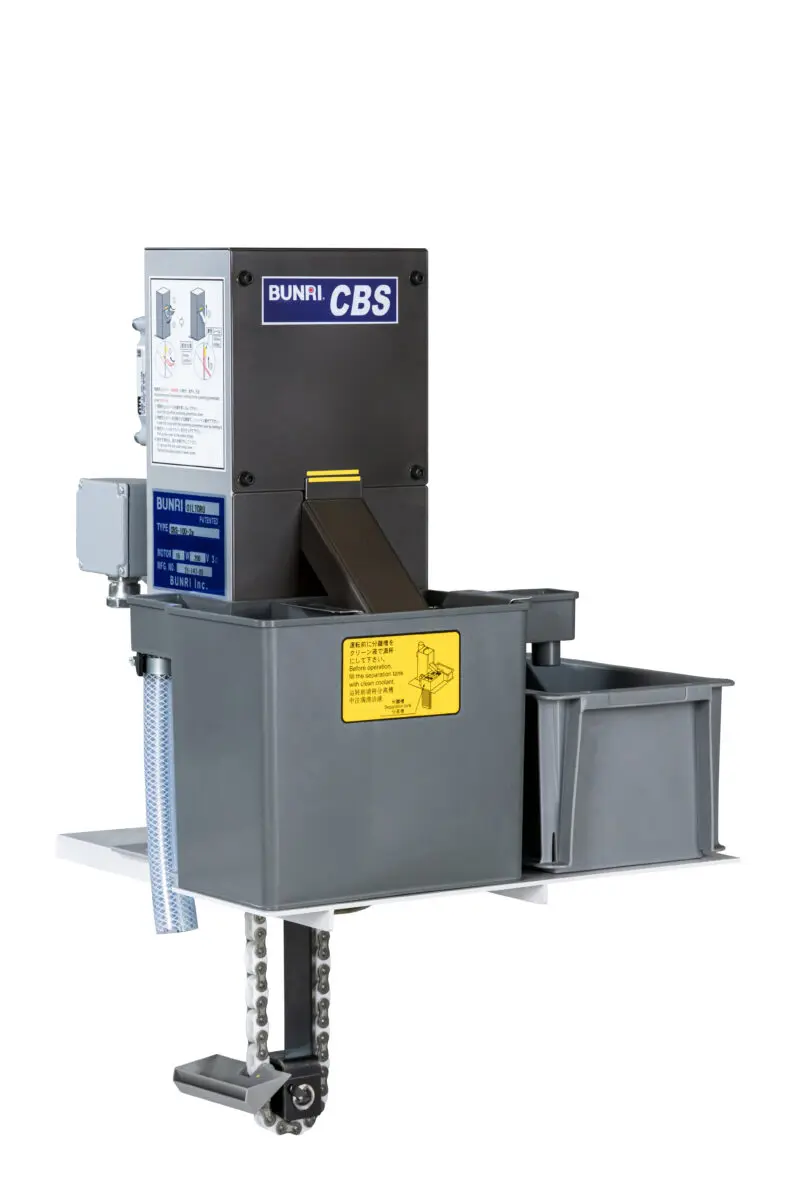

CBS-50

CBS-100

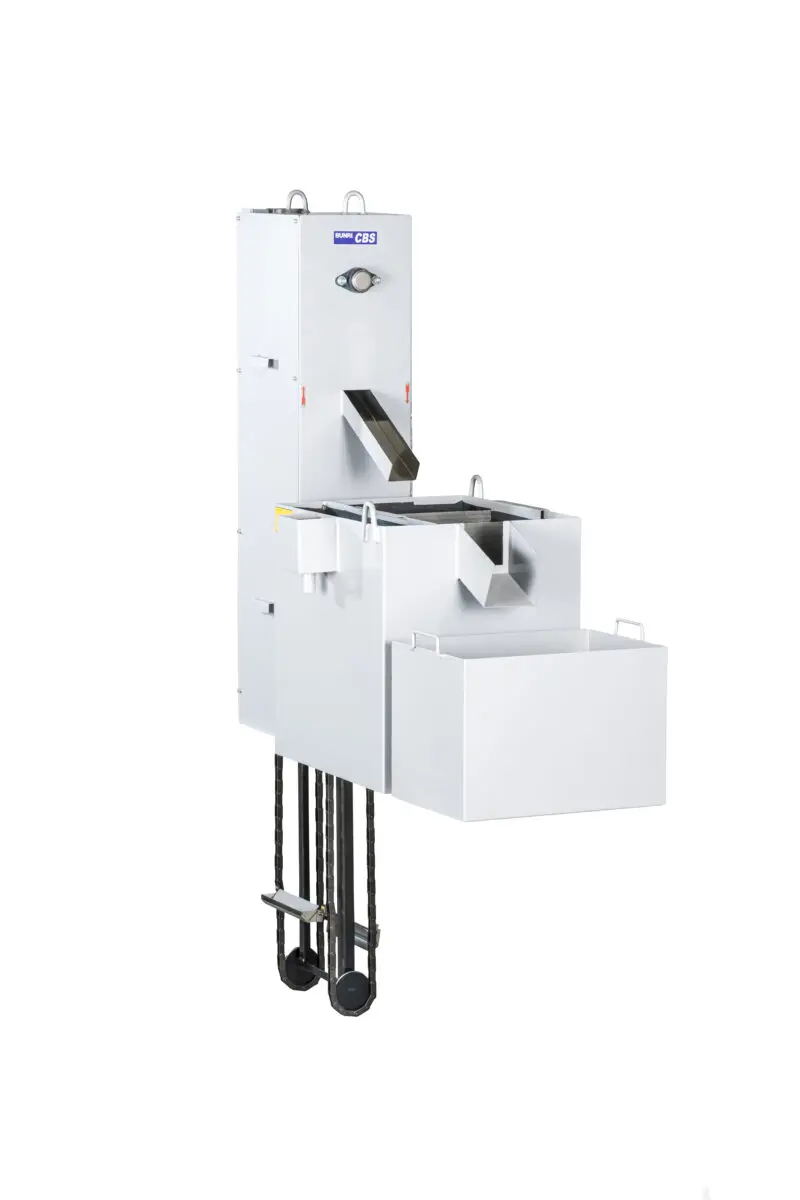

CBS-250

* The recovery capacity is based on the resulting data of our experiments, and it does not imply that this level of capacity is guaranteed.
* This unit is premised on the use of water-soluble coolant. If you want to use this unit for water or cleaning solution, please consult us.
* If you want to heat it or if the liquid temperature exceeds 60°C, please consult us.
* The specifications and dimensions are subject to change without notice.
* For information about custom products other than standard products, please consult us.
