Magnetic Filter MF

Line filter that uses a magnet as a filter medium to capture cutting chips and grinding sludge of magnetic materials.
The filter medium is a magnet, so there are no consumables and parts replacement is not required.

Features

This product filters the coolant by creating a strong magnetic field inside the housing.
TChips and sludge can be captured using a one touch operation.
The filter medium is a magnet, so no replacement is required.
This product can be installed on the existing flow line and does not require additional power. Therefore, it does not take time to install and operate.
This product does not use any consumables such as cartridges or paper filters, so no industrial waste is generated.
This product can be used both as a line filter and as a suction filter.

Coolant

Water soluble Oil-based

Processing Details

Grinding Cutting

Work Material

FC/FCD Steel Carbide

Chip Shape

Sandy Cottony Granular Needle-shaped

Grinding Chip Size

Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm)

Machine Tool

Grinding machine Saving machine Tool grinding machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Mechanism

The dirty liquid pumped by the coolant pump is filtered when passing through the magnet, and the clean liquid is sent from the top of the main body to the outside of the main body.Chips and sludge are captured by the magnet part.

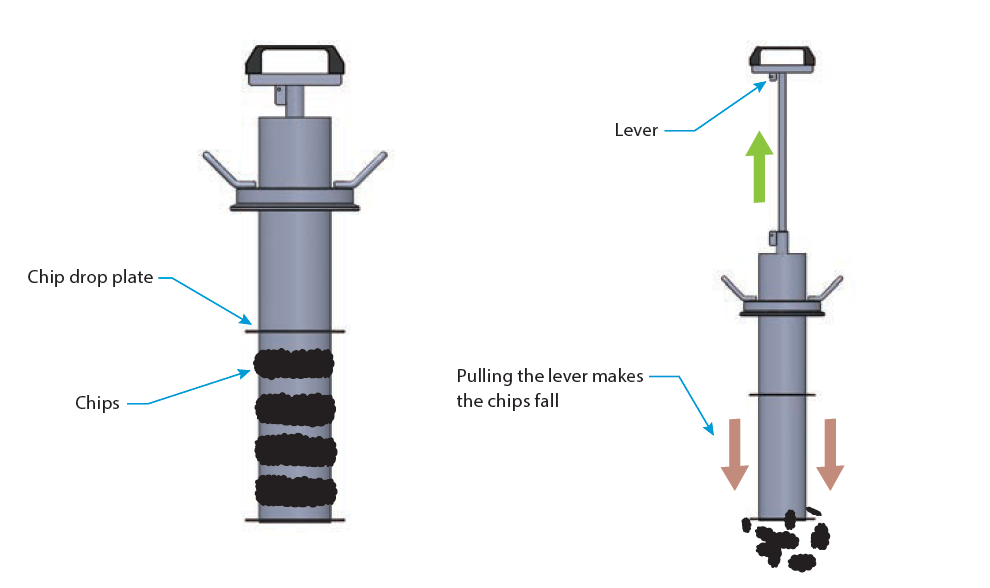

Chips and sludge are able to be recovered at any time.Remove the clamp and lift the handle to remove the magnet case from the housing.Sludge falls from the main body when the lever is pulled.

Specifications

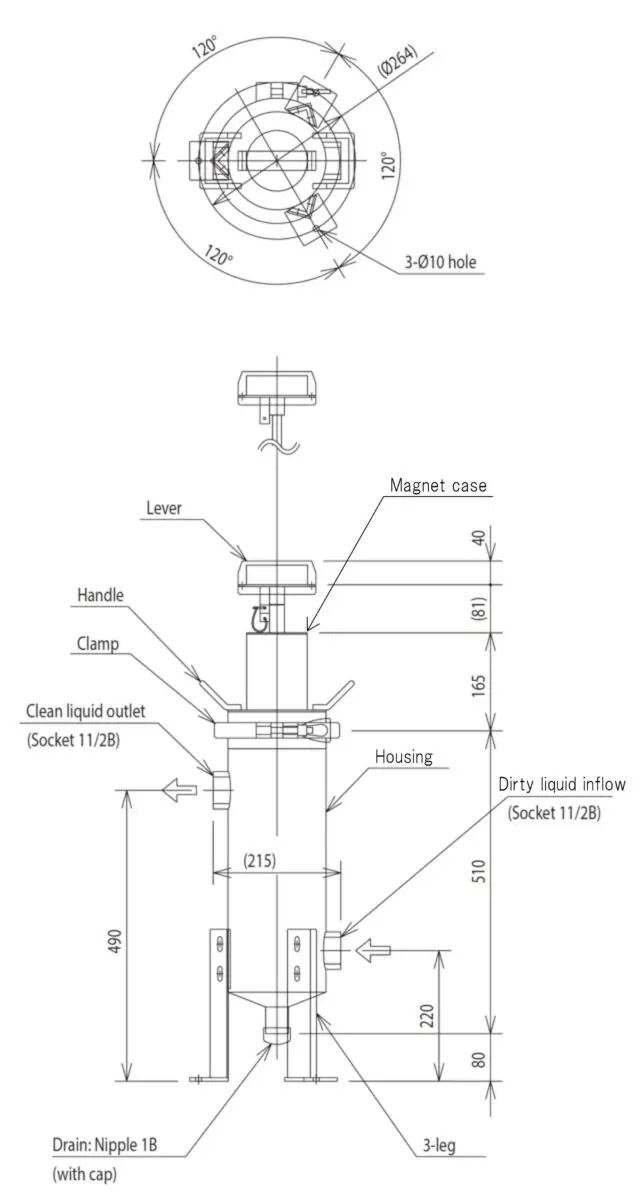

Dimensional drawing

Processing flow rate

Water soluble

200 L/min

Product weight

20㎏

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

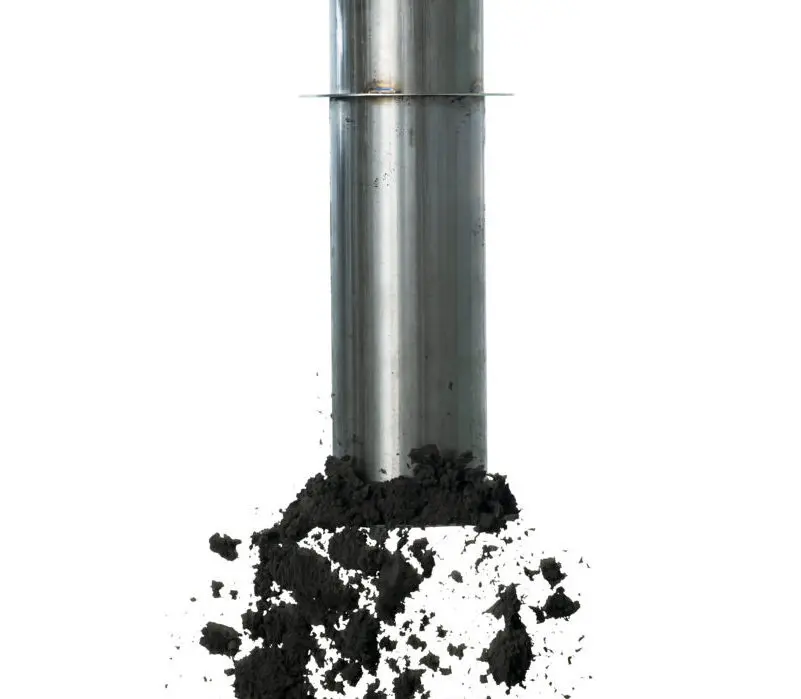

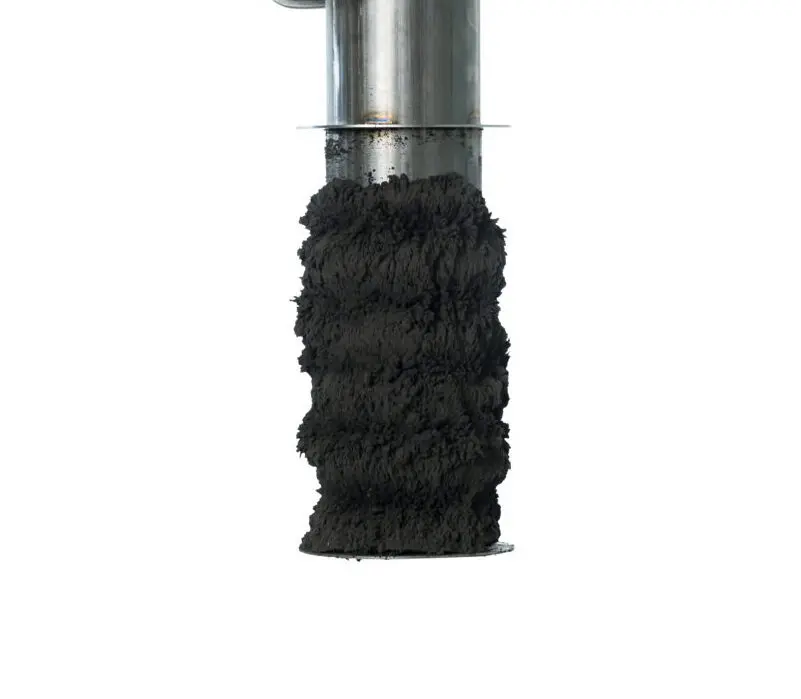

Chip (sludge) recovery image

SW・MSW

SW・MSW

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
