Magnetic Roller Conveyor RCC/RC

Features of 2 Type

RCC

• A single machine can process various chips such as tangled small curl-shaped (max. 100 mm), needle-shaped, sand-shaped, and cotton-shaped chips.

RC

• This product can be used as a workpiece or scrap conveyor.

Mechanism

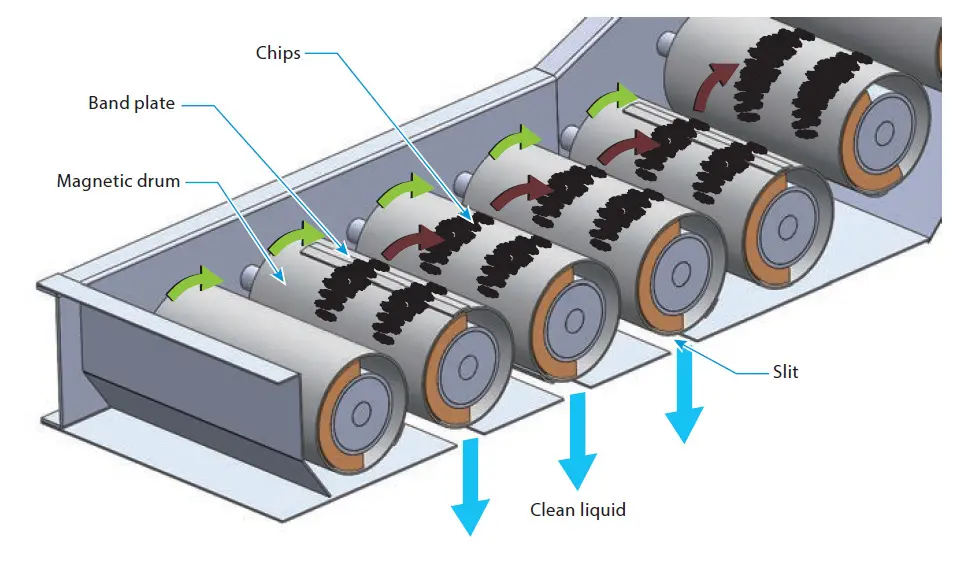

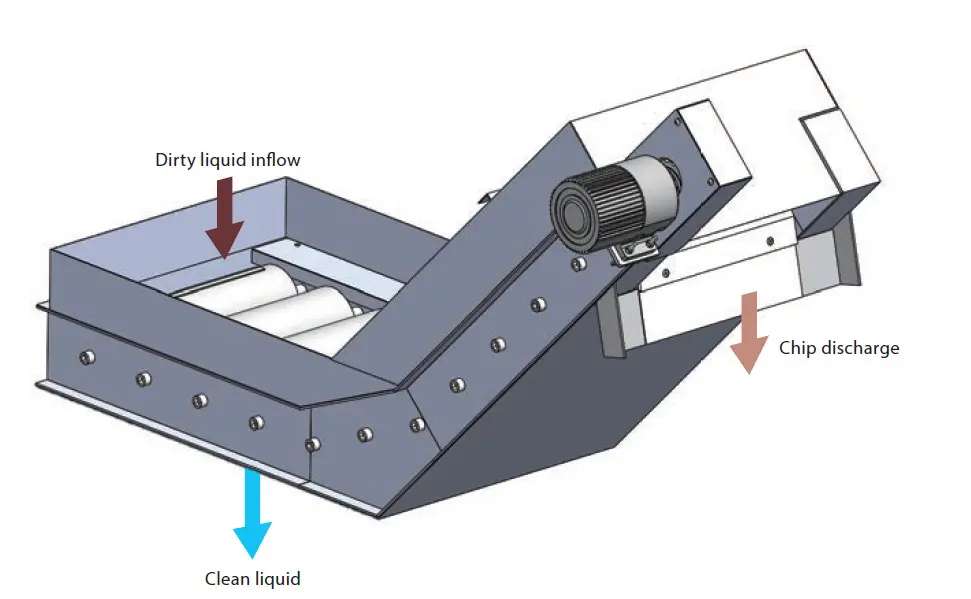

1. The dirty liquid flows onto the conveyor.
2. The dirty liquid is filtered when it passes through the gap between the magnetic drums, and flows from the slit of the bottom plate to the clean tank.
3. The captured chips fall onto the next magnetic drum as a result of the rotation of the magnetic drum. By repeating this process, chips are moved to the top of the conveyor and discharged.

Specifications

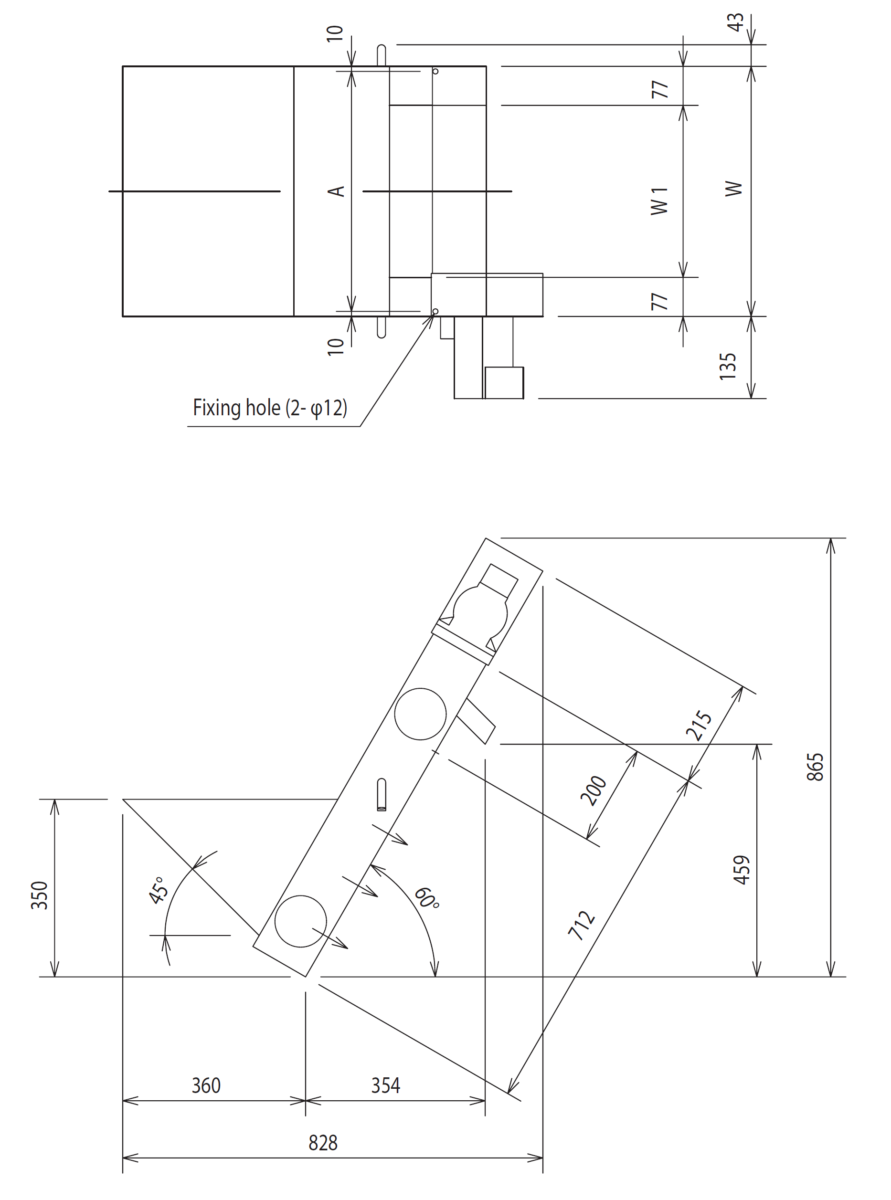

Dimensional drawing

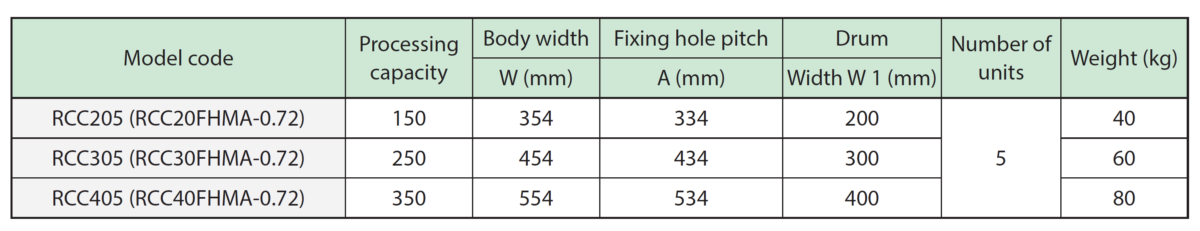

Dimension table

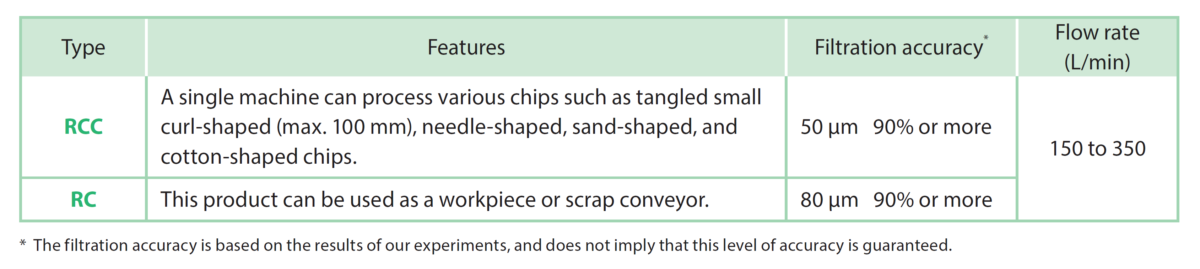

Filtration accuracy

• RCC　50μm 90％ or more
• RC　80μm 90％ or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

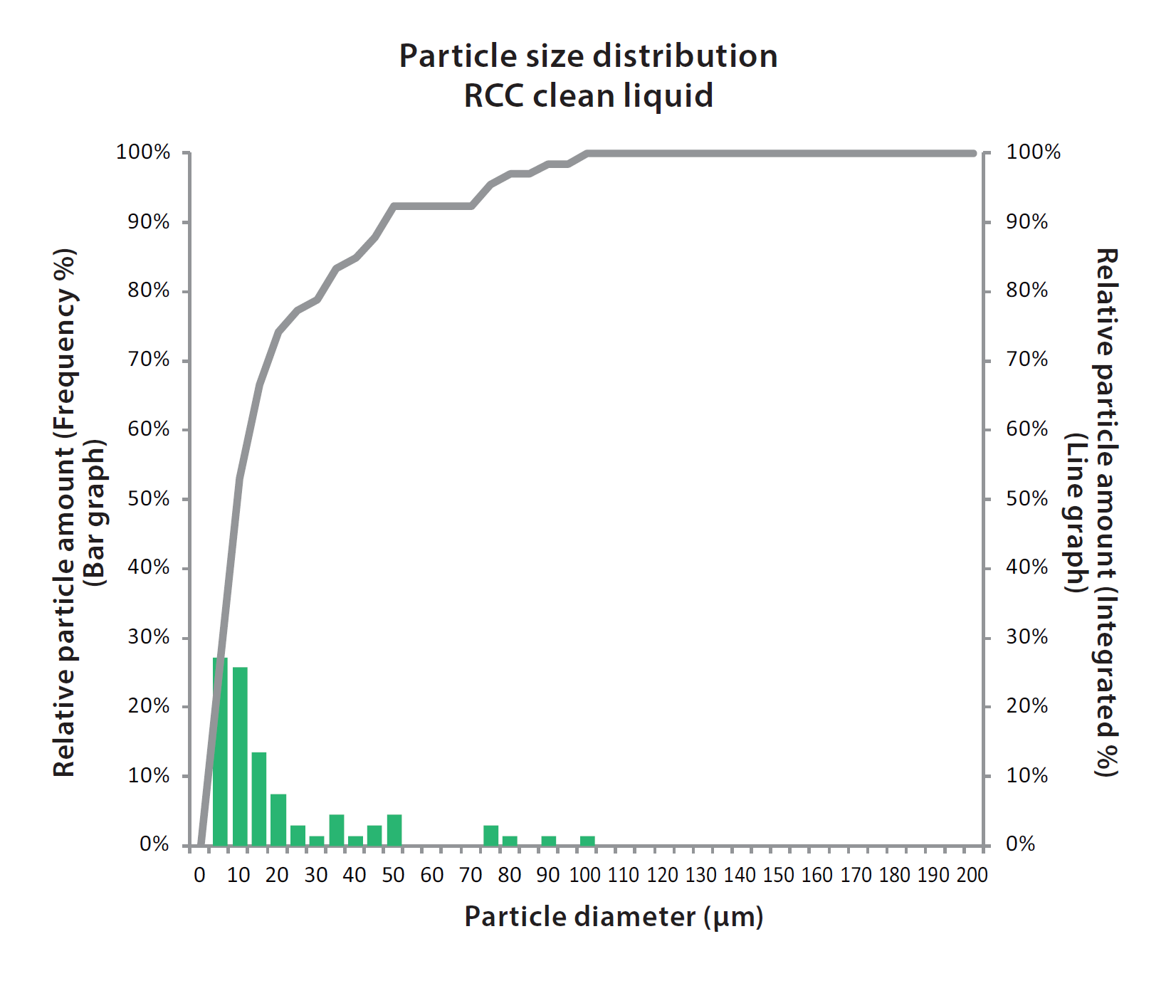

Sludge distribution status

RCC

Machine tool: Gun drill machine
Coolant: Water soluble
Processing flow rate: 250 L/min
Chip material: FCD

Processing flow rate

Water soluble

• RCC205（RCC20FHMA-0.72）　150L/min
• RCC305（RCC30FHMA-0.72）　250L/min
• RCC405（RCC40FHMA-0.72）　350L/min

Product weight

Without oil cooler

• RCC205（RCC20FHMA-0.72）　40㎏
• RCC305（RCC30FHMA-0.72）　60㎏
• RCC405（RCC40FHMA-0.72）　80㎏

* The product weight varies depending on the specifications, options, etc.

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

* For information about the specified color, please consult us.

Drive motor

60W

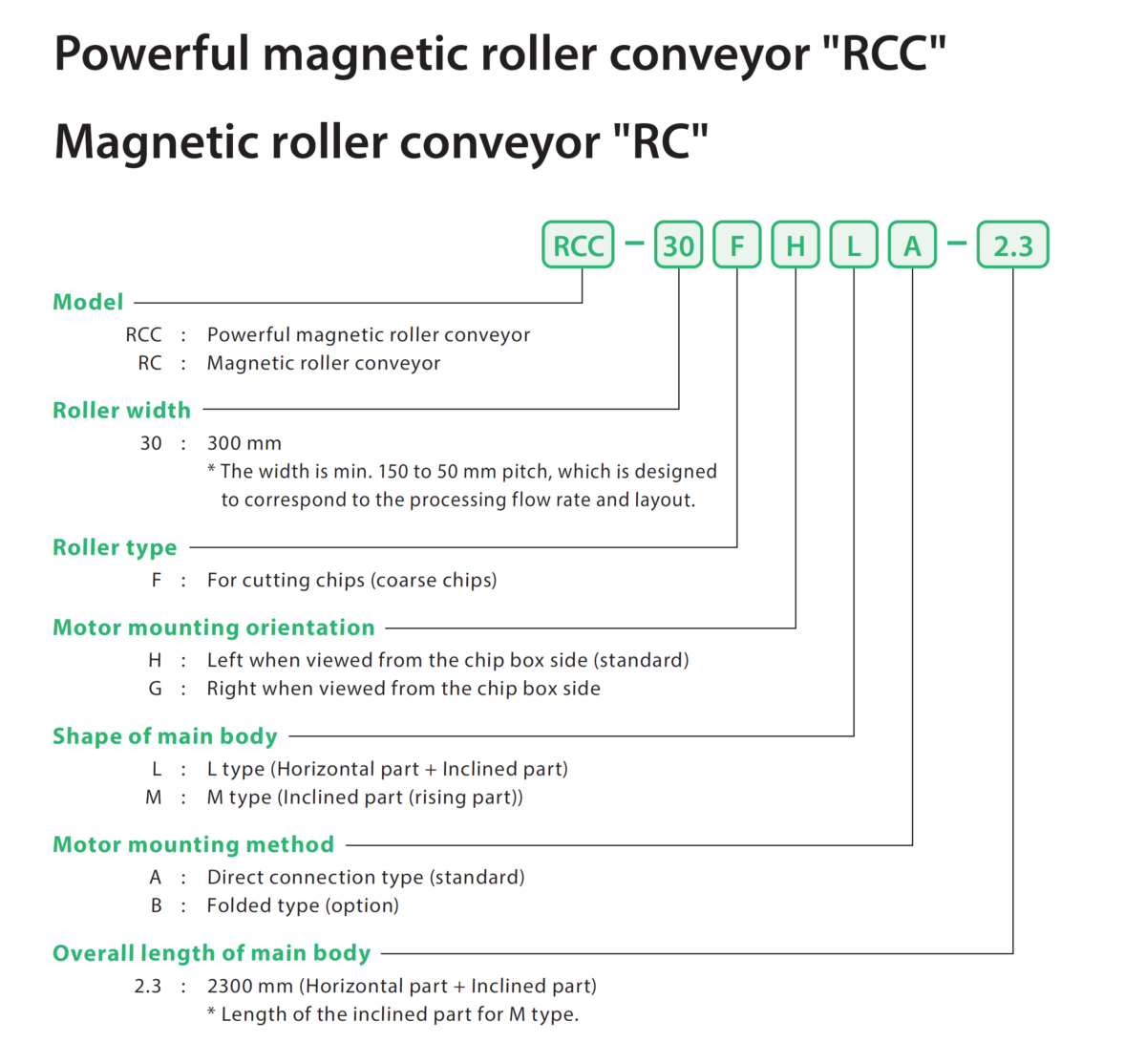

Model code

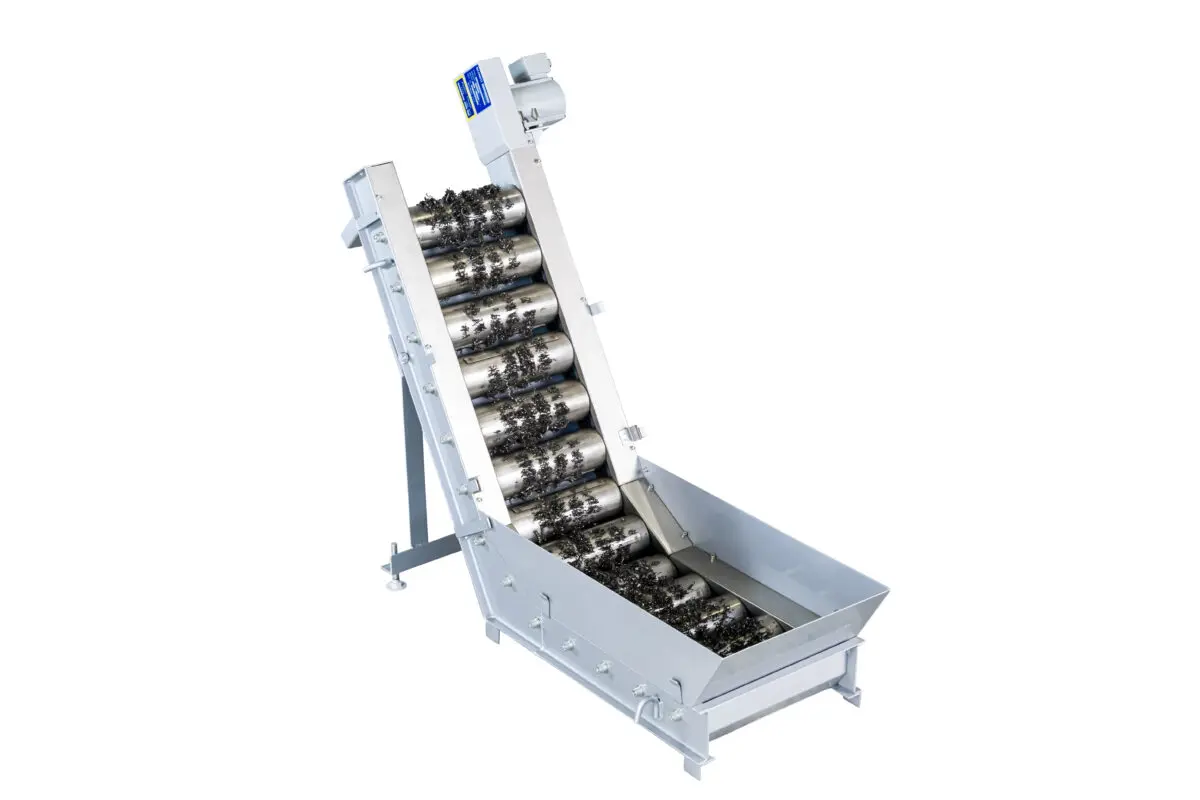

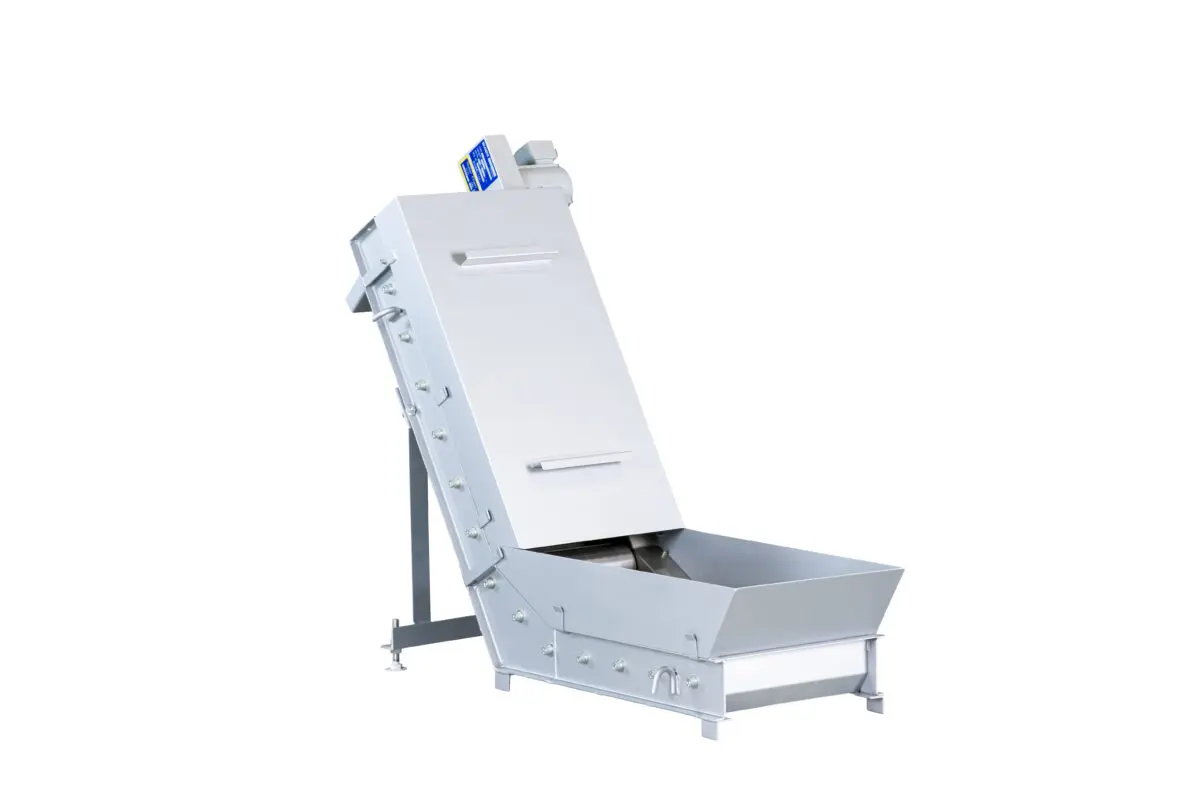

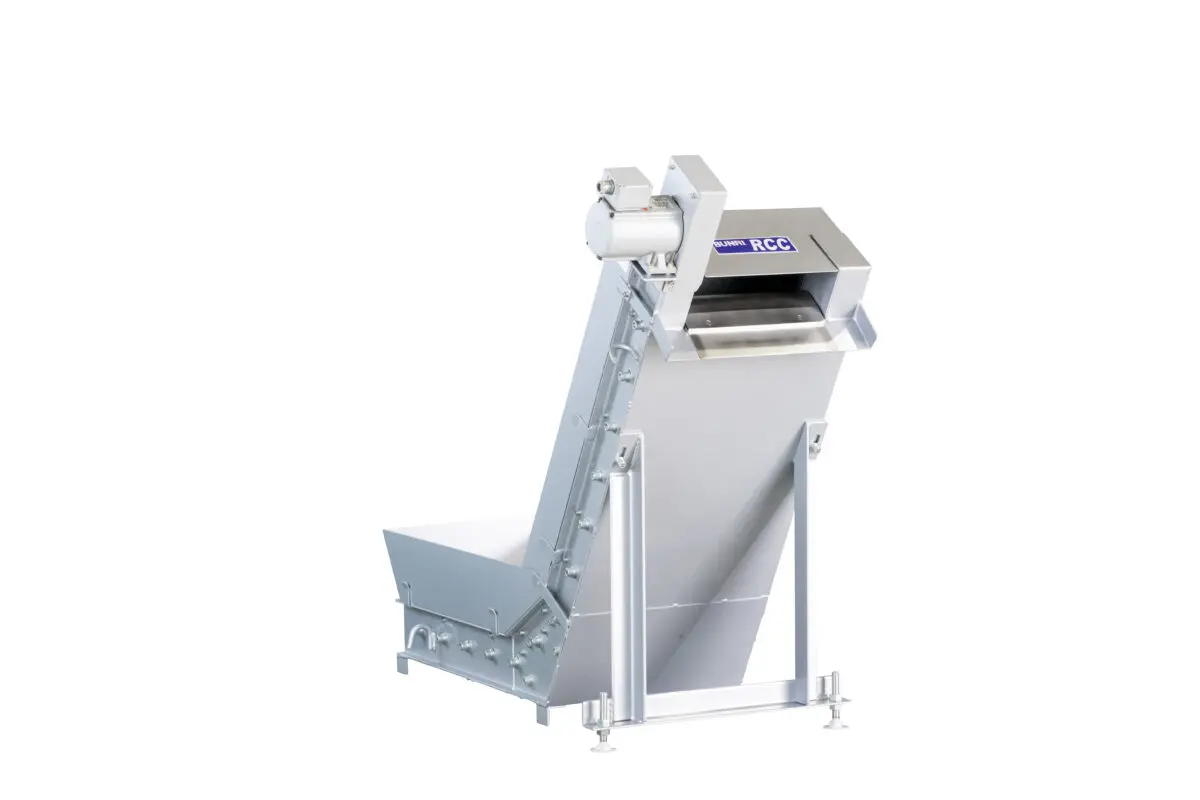

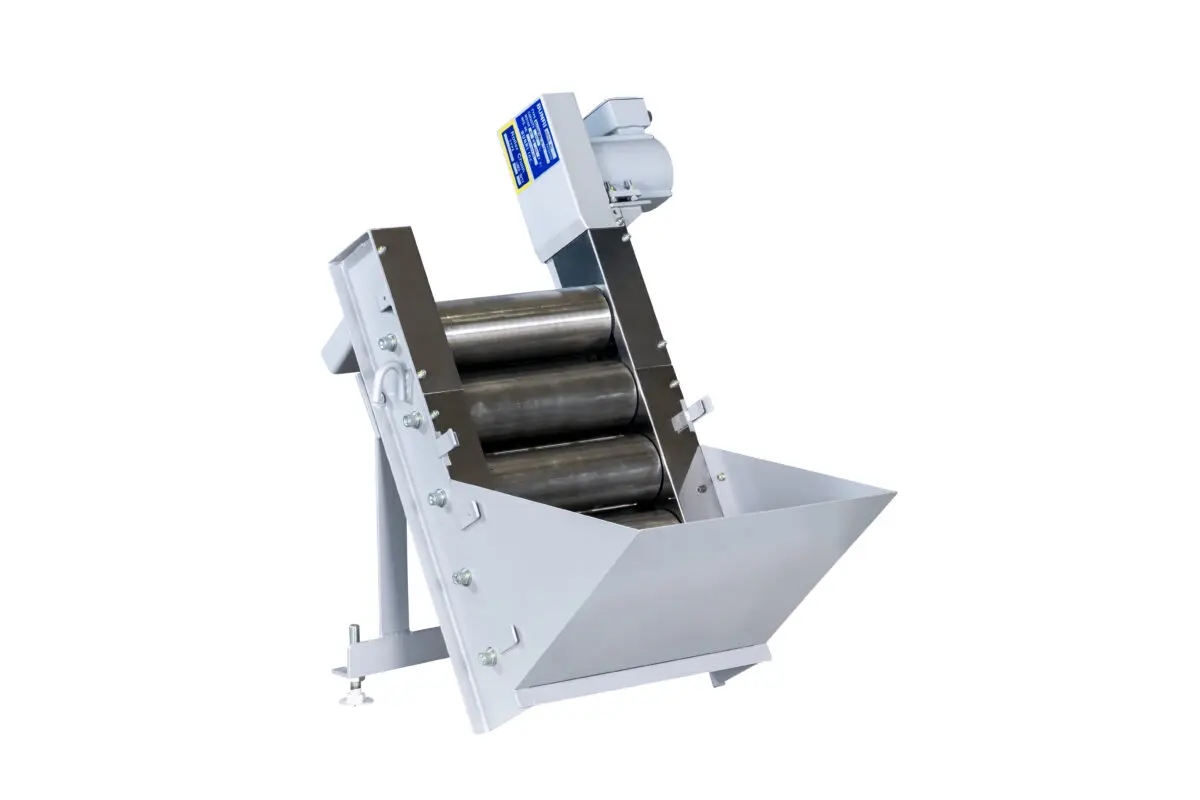

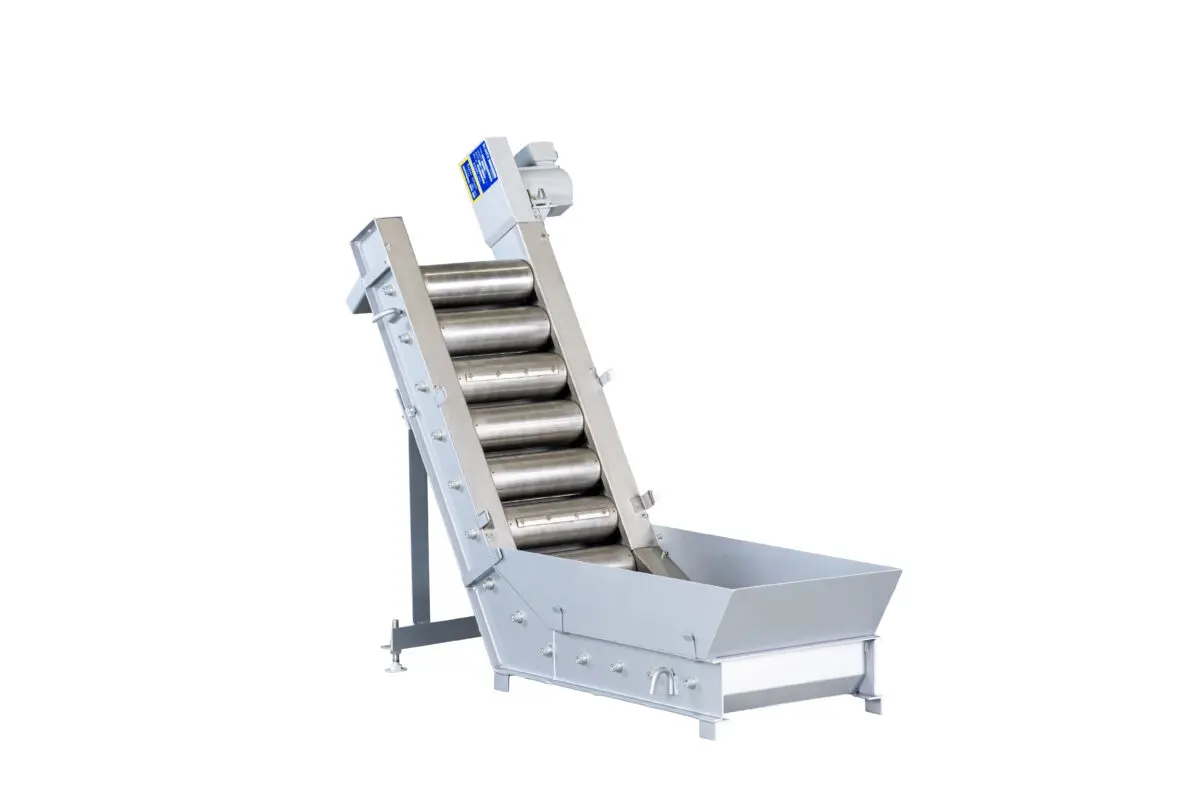

Product Photo (Example)

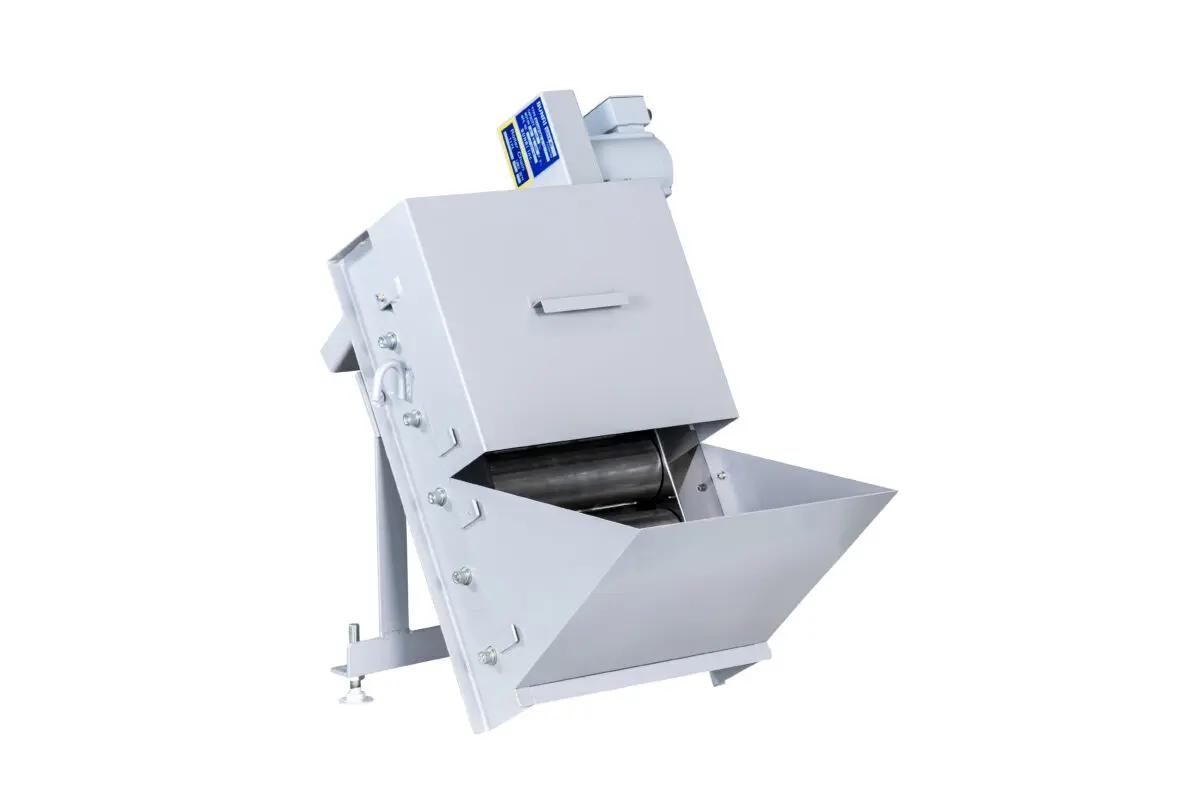

RCC (L type)

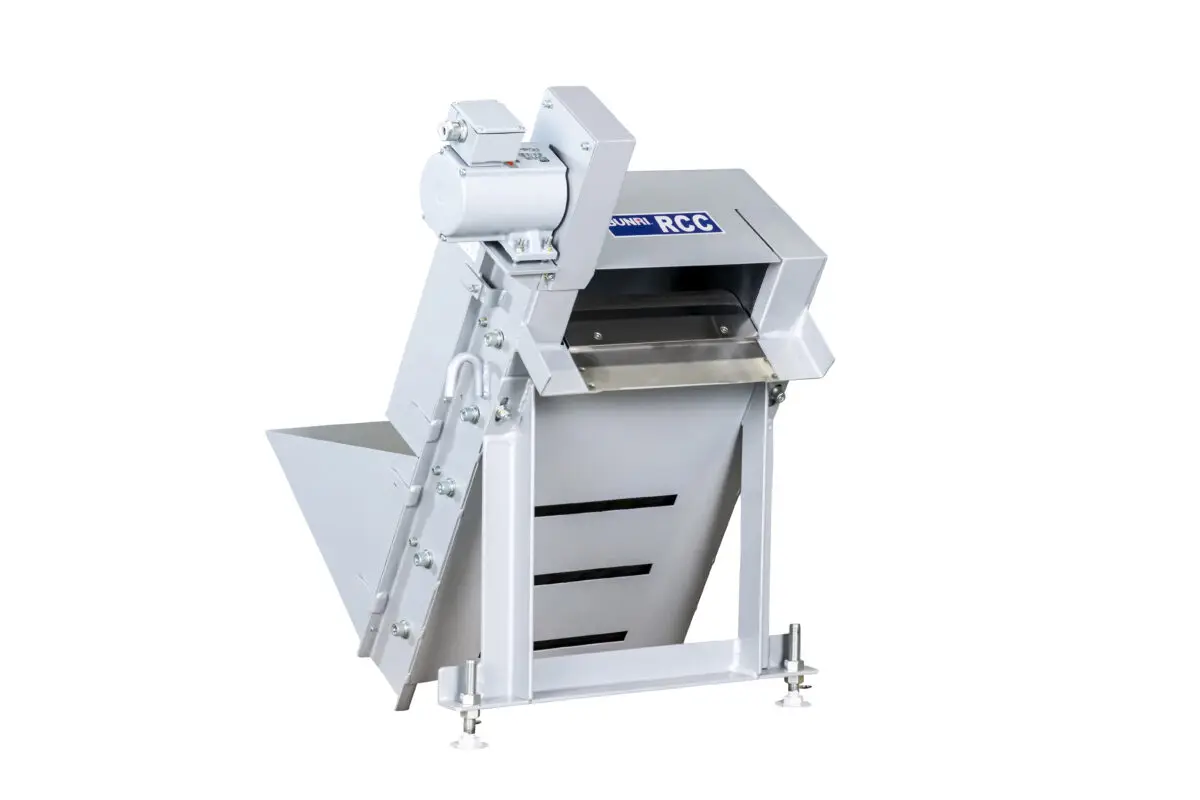

RCC (M type)

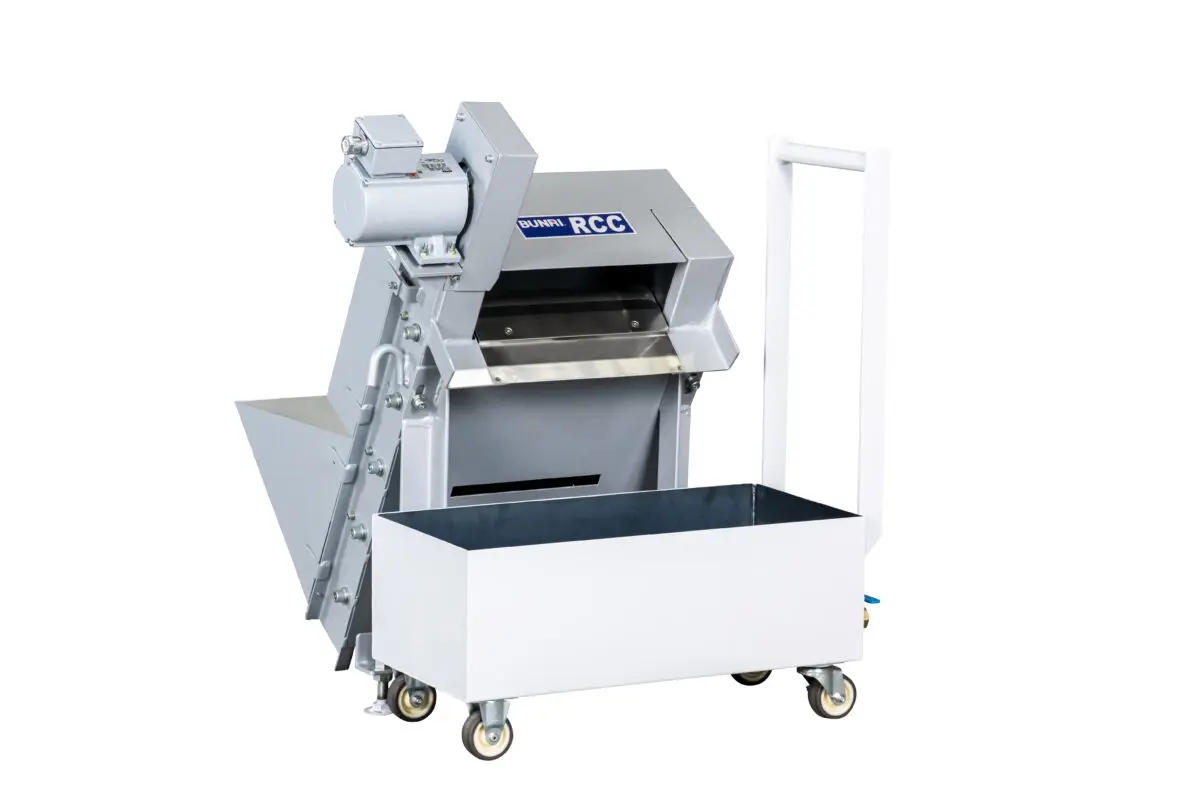

With chip trolley

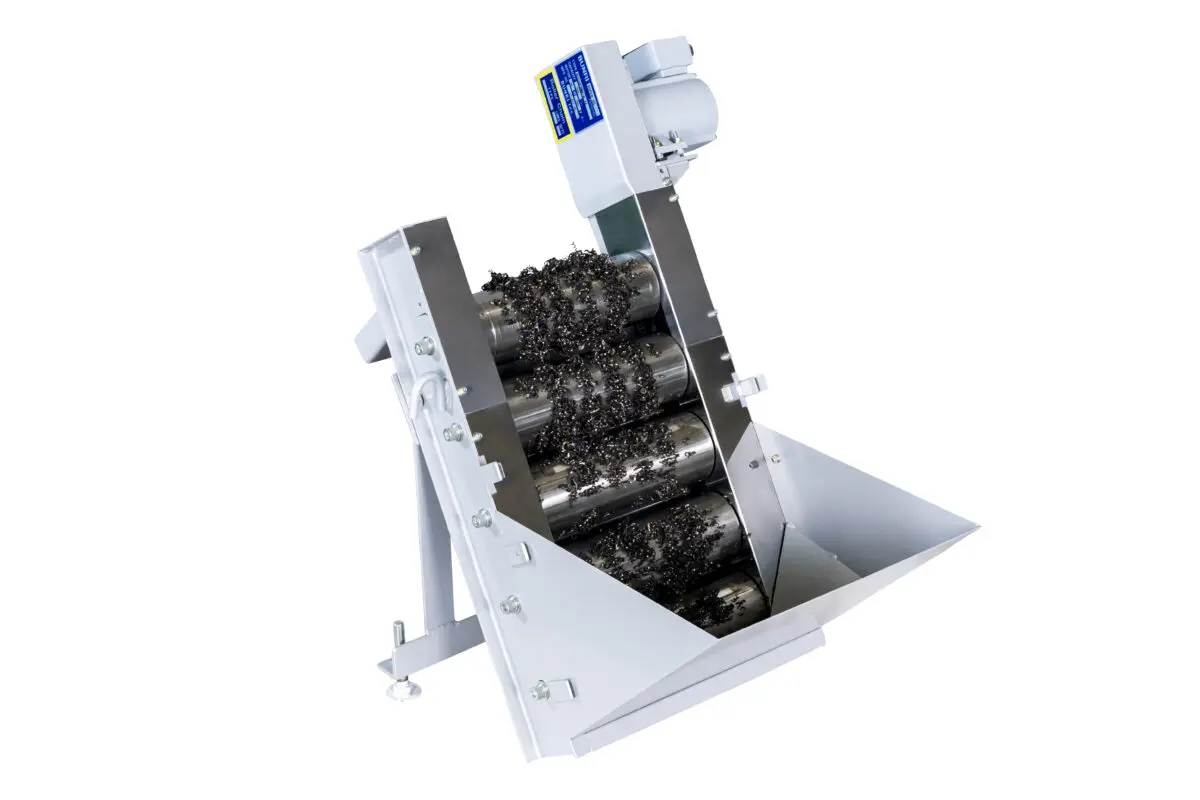

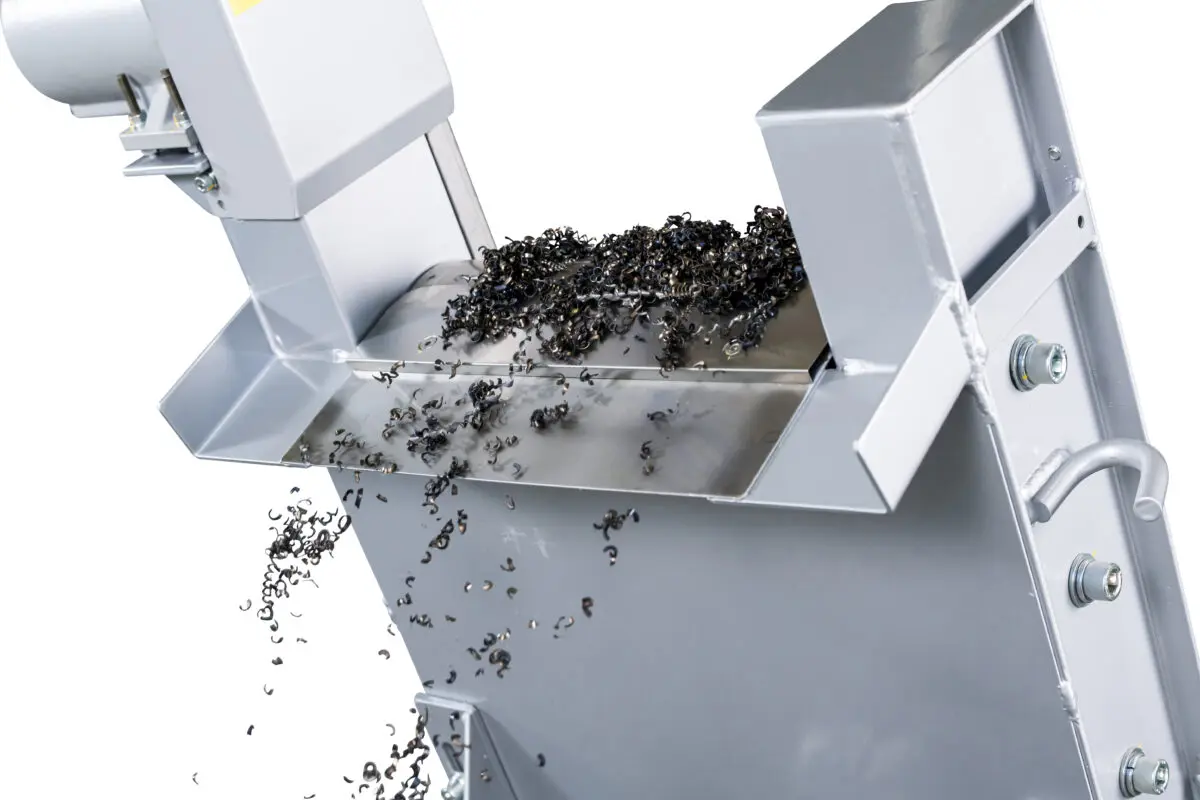

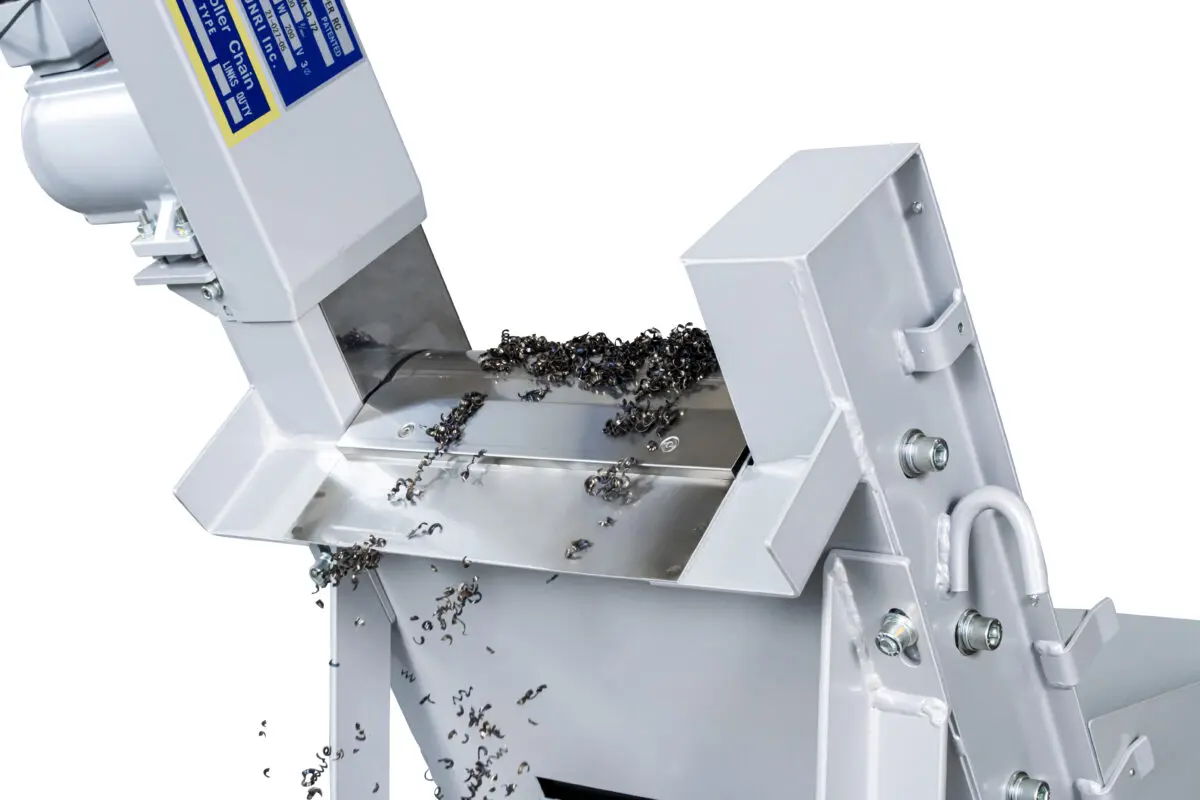

Chip discharge image

RCC (L type)

RCC (M type)

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
