Magnetic Separator Phoenix NEO

Coolant

Water soluble Oil-based

Processing Details

Grinding

Work Material

FC/FCD Steel

Chip Shape

Sandy Cottony Granular Needle-shaped

Grinding Chip Size

Ultrafine particles (5 µm to 10 µm) Fine particles (10 µm to 100 µm) Coarse particles (0.1 mm to 0.5 mm)

Machine Tool

Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine Thread rolling machine Induction hardening machine Washing machine

Product Introduction Video

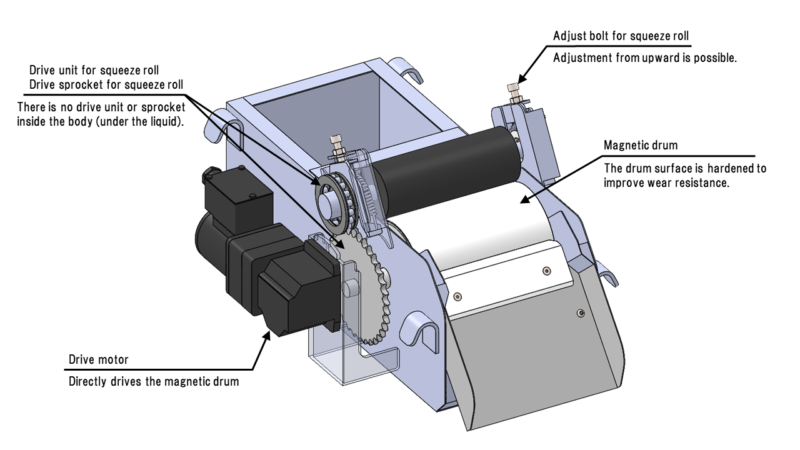

Mechanism

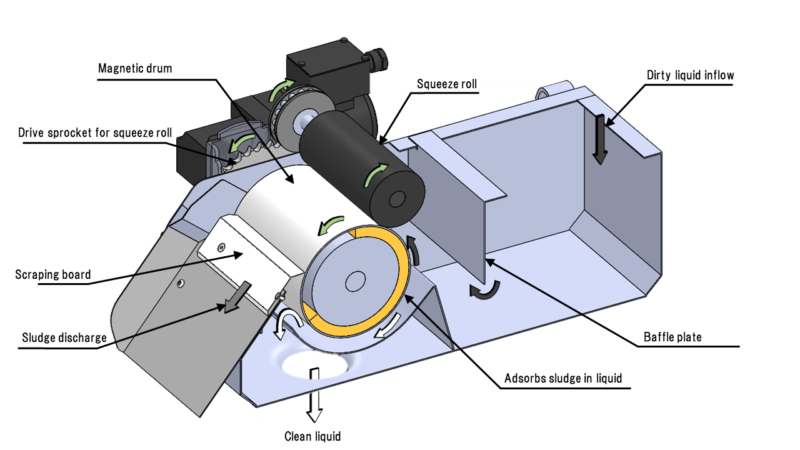

When the dirty liquid that flowed into this machine passes through the filtration section (magnetic drum), the sludge in the liquid is adsorbed by the magnetic force of the magnet, and filtered.
After filtration, the clean liquid is discharged to the outside of the main body.
The adsorbed sludge is—as a result of the rotation of the magnetic drum—dehydrated by the squeeze roll.
The dehydrated sludge is scraped off by the scraping board that contacts the magnetic drum, and discharged to the outside of the main body.

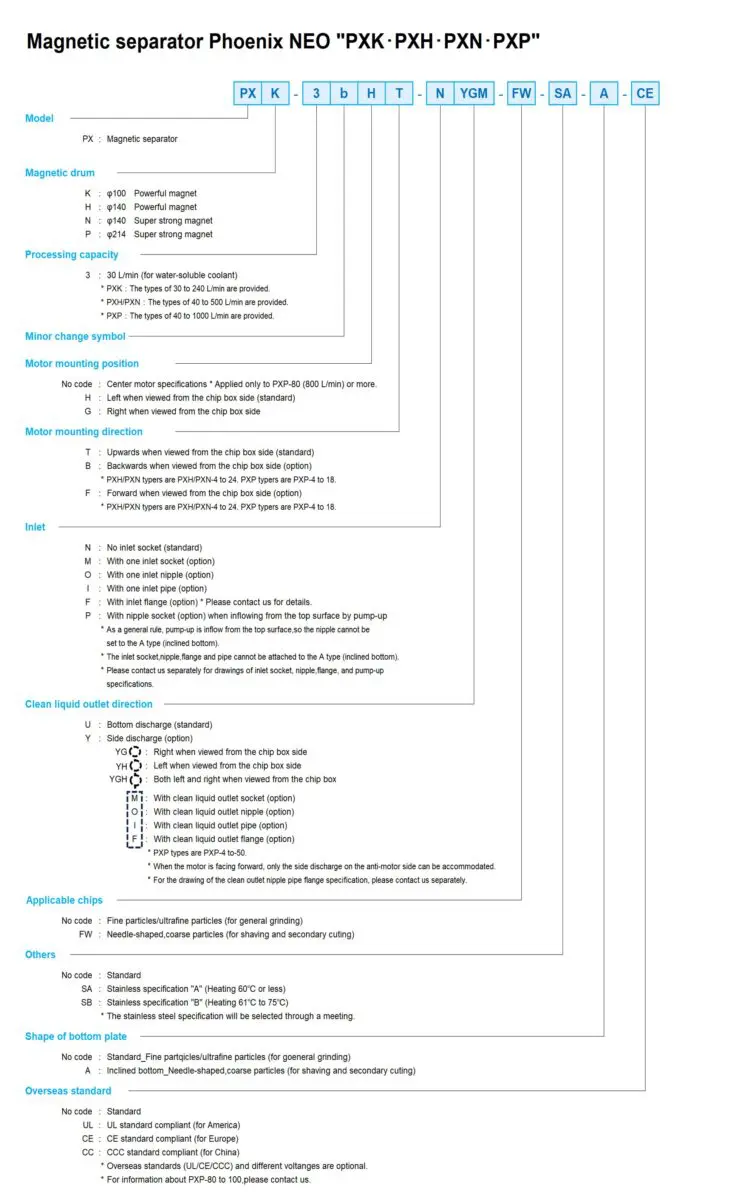

Specifications

Dimensional Drawing

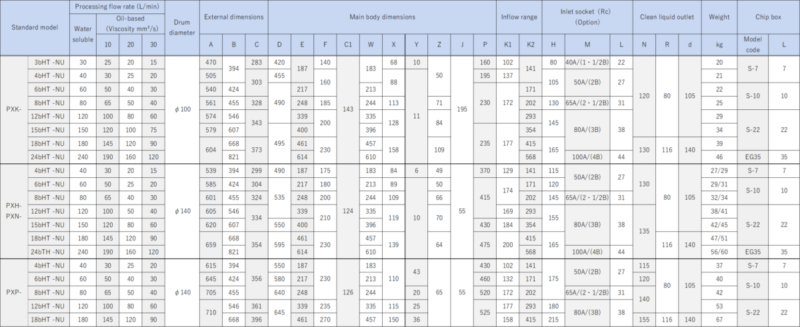

Dimensional Table

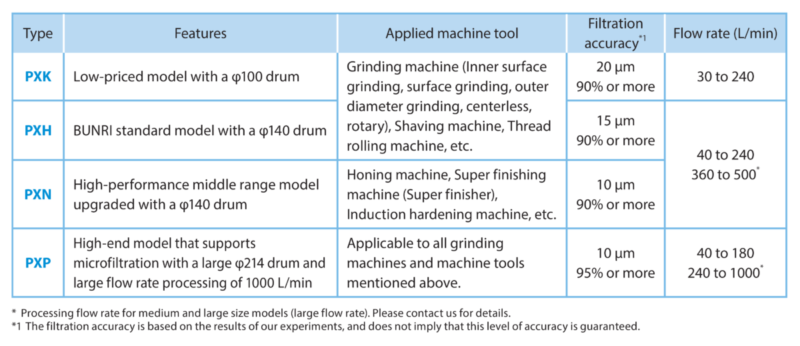

Filtration accuracy

PXK 20 μm 90% or more
PXK 15 μm 90% or more
PXK 10 μm 90% or more
PXK 10 μm 95% or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

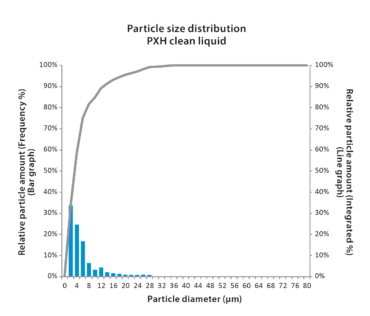

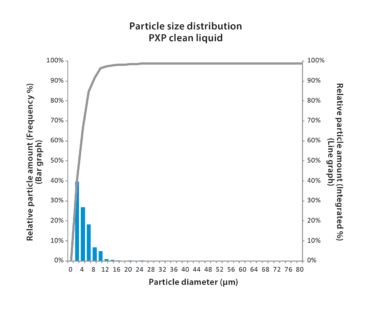

Sludge distribution status

PXK

PXH

PXN

PXP

Machine tool: Inner diameter grinding machine Coolant: Water soluble Processing flow rate: 60 L/min
Chip material: Steel

Processing Flow Rate

Water soluble

PXK 30 to 240 L/min
PXK 40 to 240 L/min
PXK 40 to 240 L/min
PXK 40 to 180 L/min

* We also provide medium and large size models (large flow rate). Please contact us for details.

Product weight

PXK 20 to 46 ㎏
PXK 27 to 56 ㎏
PXK 29 to 60 ㎏
PXK 37 to 67 ㎏

* For details, please check the product dimensions.
* The product weight varies depending on the specifications, options, etc.

Paint color

PXK Medium metallic (Approximate color: Munsell No. N-6.7)
PXK Medium metallic (Approximate color: Munsell No. N-6.7)
PXK Medium metallic (Approximate color: Munsell No. N-6.7)
PXK Champagne gold (Approximate color: Munsell No. N-2.5Y6/2)

* For information about the specified color, please consult us.

Drive/geared motor

25W

* The medium and large size models have different specifications.

Option

Inlet Socket,nipple,pipe,flange
Outlet With socket on the left and right sides

* Please contact us for details

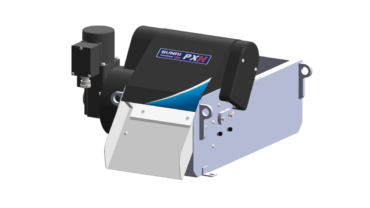

Product Photo (Example)

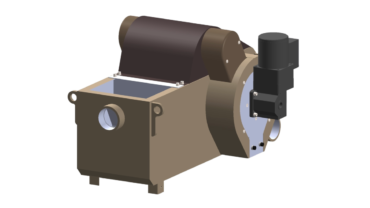

Standard without inlet socket, Bottom discharge

PXK-6bHT-NU

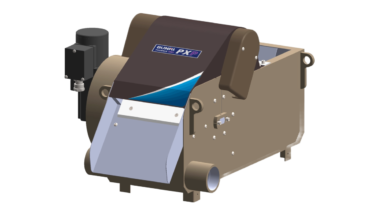

Option with inlet socket, Side discharge

PXP-6bHT-MYGHM

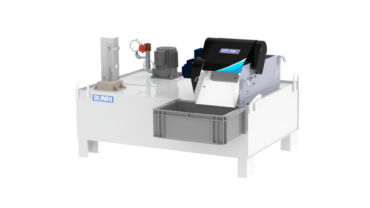

With tank, pump, and liquid level gauge

PXH-6aH-NU with tank, pump, and liquid level gauge

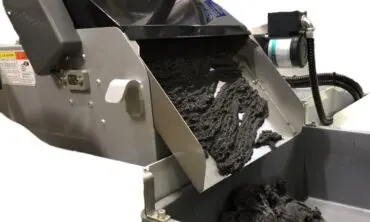

Chip discharge image

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 30 mm2/s, please consult us.
* For information about custom products other than standard products, please consult us.
