Microfiltration filter conveyor BAL

Mechanism

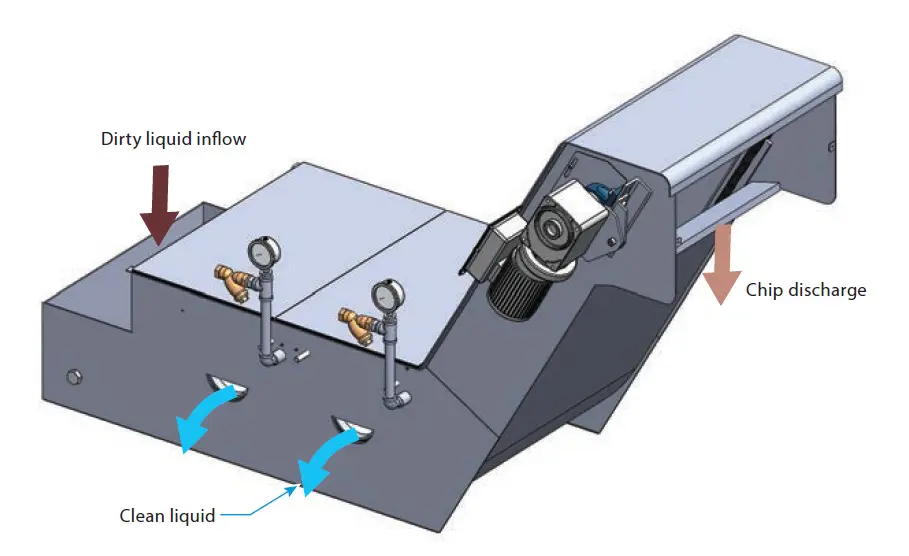

1. The dirty liquid flows onto the conveyor.

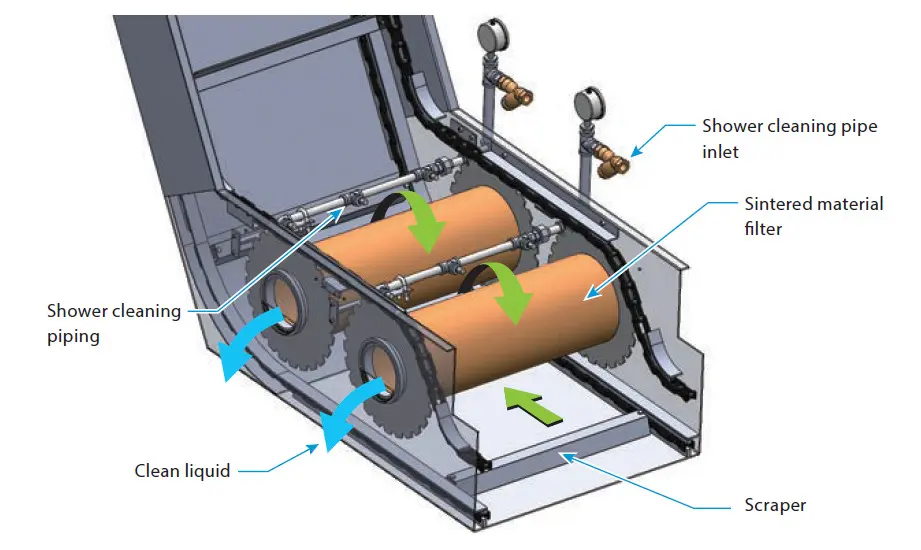

2. The dirty liquid is filtered when it passes through the rotating sintered material filter.The clean liquid is sent from the inside of the sintered material filter to the outside of the main body.
3. Chips adhering to the surface of the sintered material filter are shower-cleaned from the outside of the filter.Clogging is prevented by showering the filter that has come out of the liquid and performing automatic cleaning.
4. Chips that have settled on the bottom of the conveyor are conveyed by the scraper.
5. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

Filtration accuracy

20μm 90％ or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

Sludge distribution status

Processing flow rate

Water soluble

• BAL-2（BAL-2F-D-CBS）　200L/min

Product weight

Water soluble

• BAL-2（BAL-2F-D-CBS）　450㎏

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Geared motor

100W

Options

• Chain bucket skimmer CBS
• Relay terminal box
• Control panel, Operation box

* Please contact us for details.

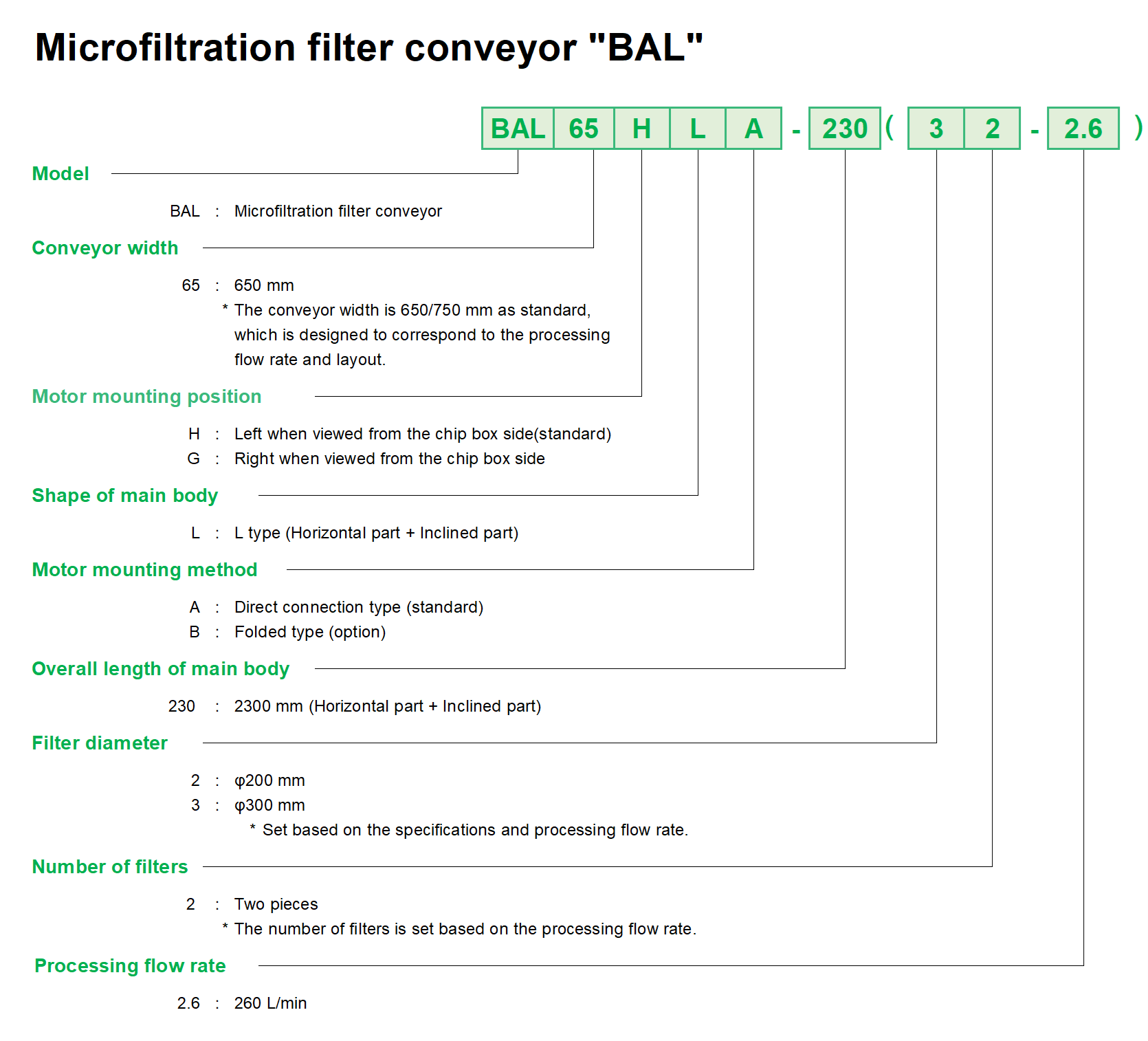

Model code

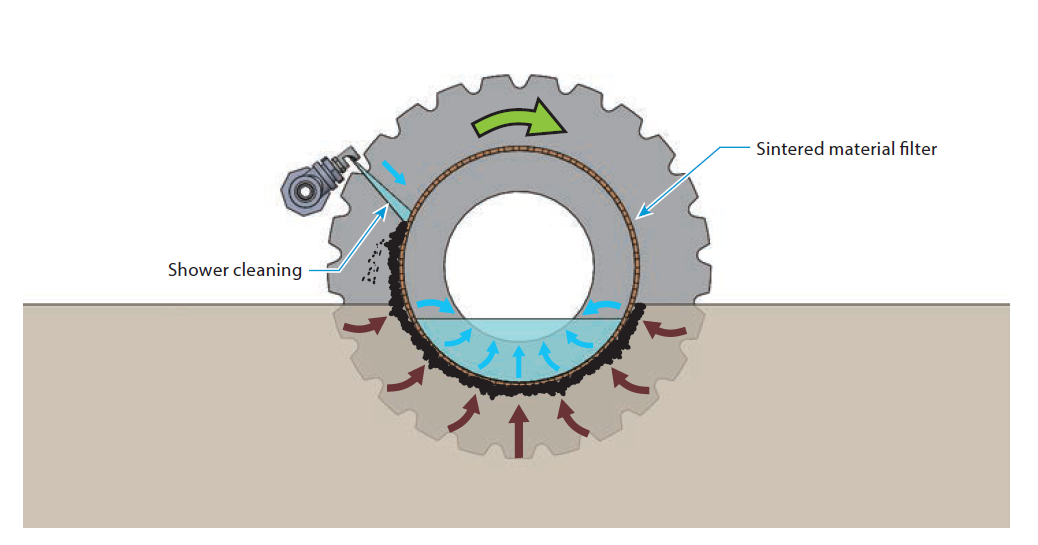

Shower cleaning image

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

---

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For information about custom products other than standard products, please consult us.
