Rolling Filter Conveyor AL/ALL/SKA

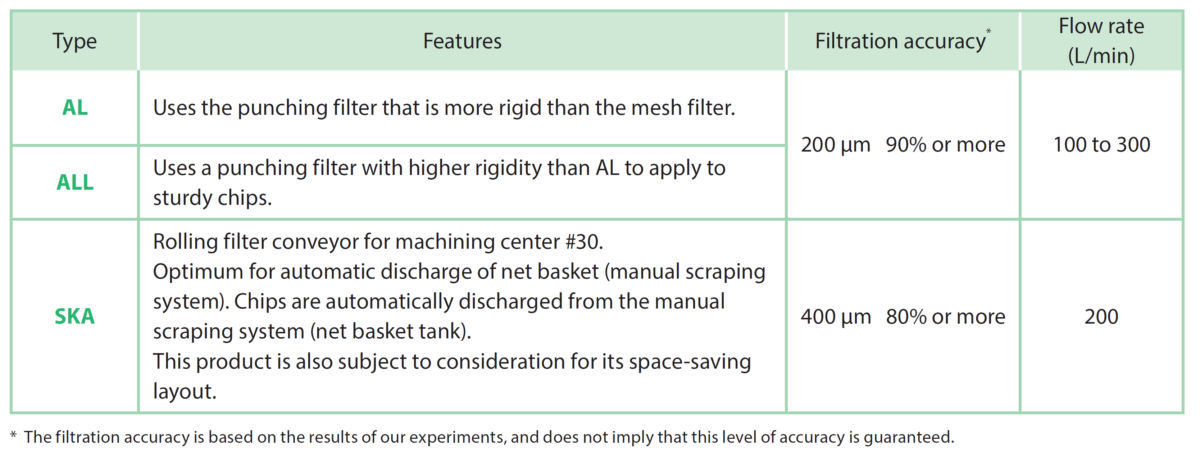

Features of 3 Type

AL

• Uses the punching filter that is more rigid than the mesh filter

ALL

• Uses a punching filter with higher rigidity than AL to apply to sturdy chips.

SKA

• Rolling filter conveyor for machining center #30.
• Optimum for automatic discharge of net basket (manual scraping system).Chips are automatically discharged from the manual scraping system (net basket tank).
• This product is also subject to consideration for its space-saving layout.

Mechanism

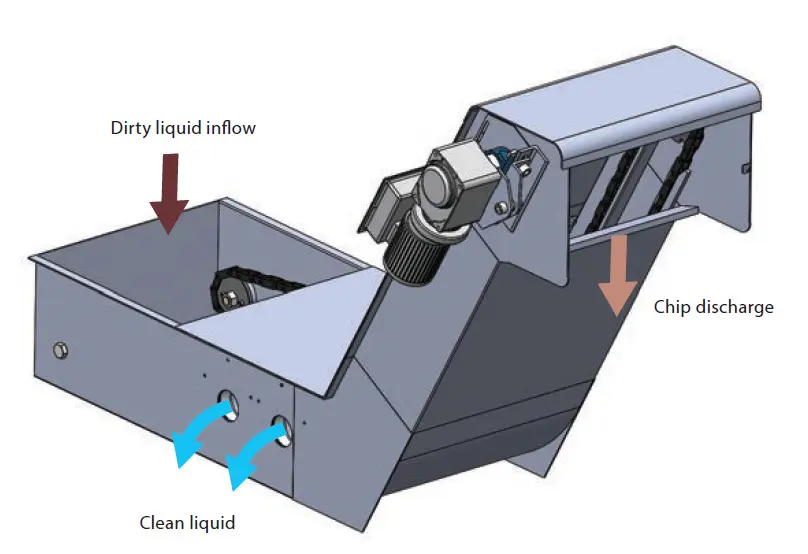

1. The dirty liquid flows onto the conveyor

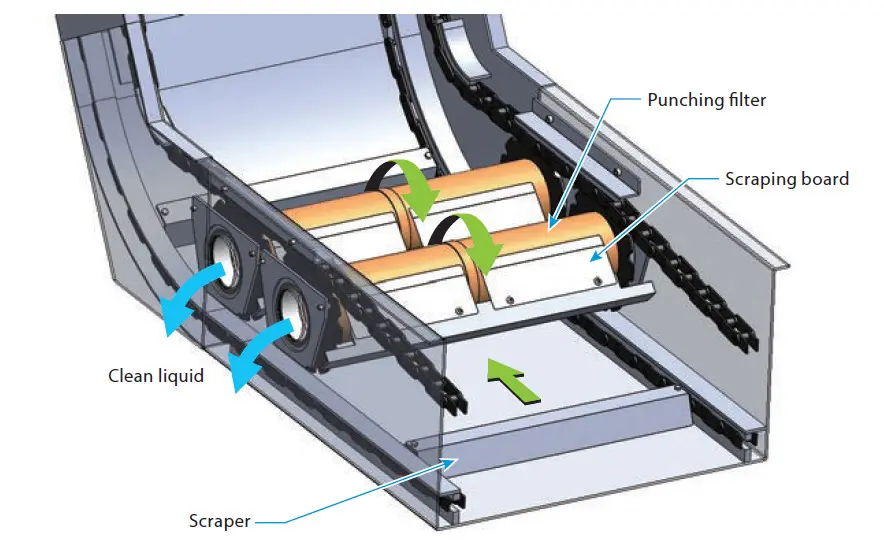

2. The dirty liquid is filtered as it passes through the rotating punching filter, and the clean liquid is sent from the inside of the punching filter to the outside of the main body.
3. Chips captured in the punching filter are scraped off by the scraping board and settle on the bottom of the conveyor.
4. Chips that have settled on the bottom of the conveyor are conveyed by the scraper
5. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

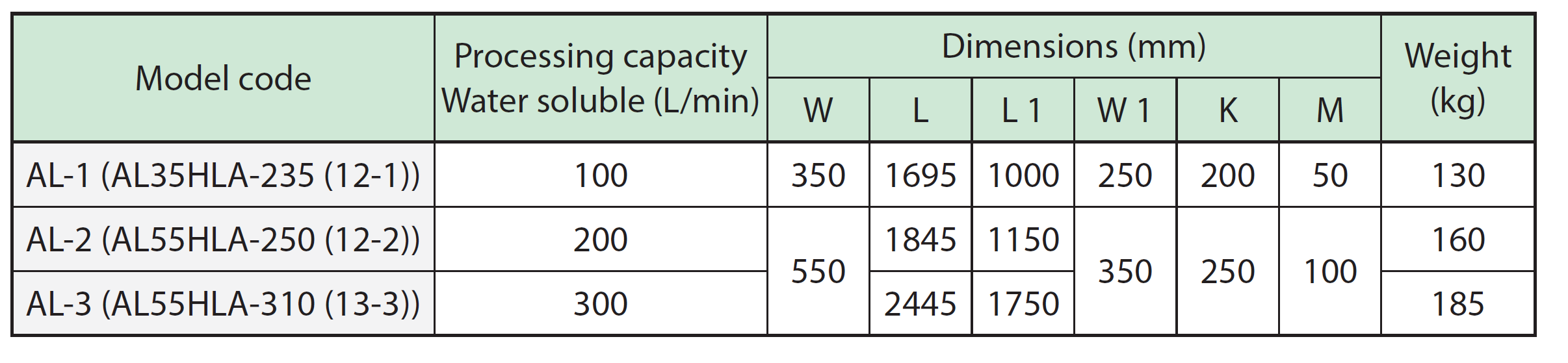

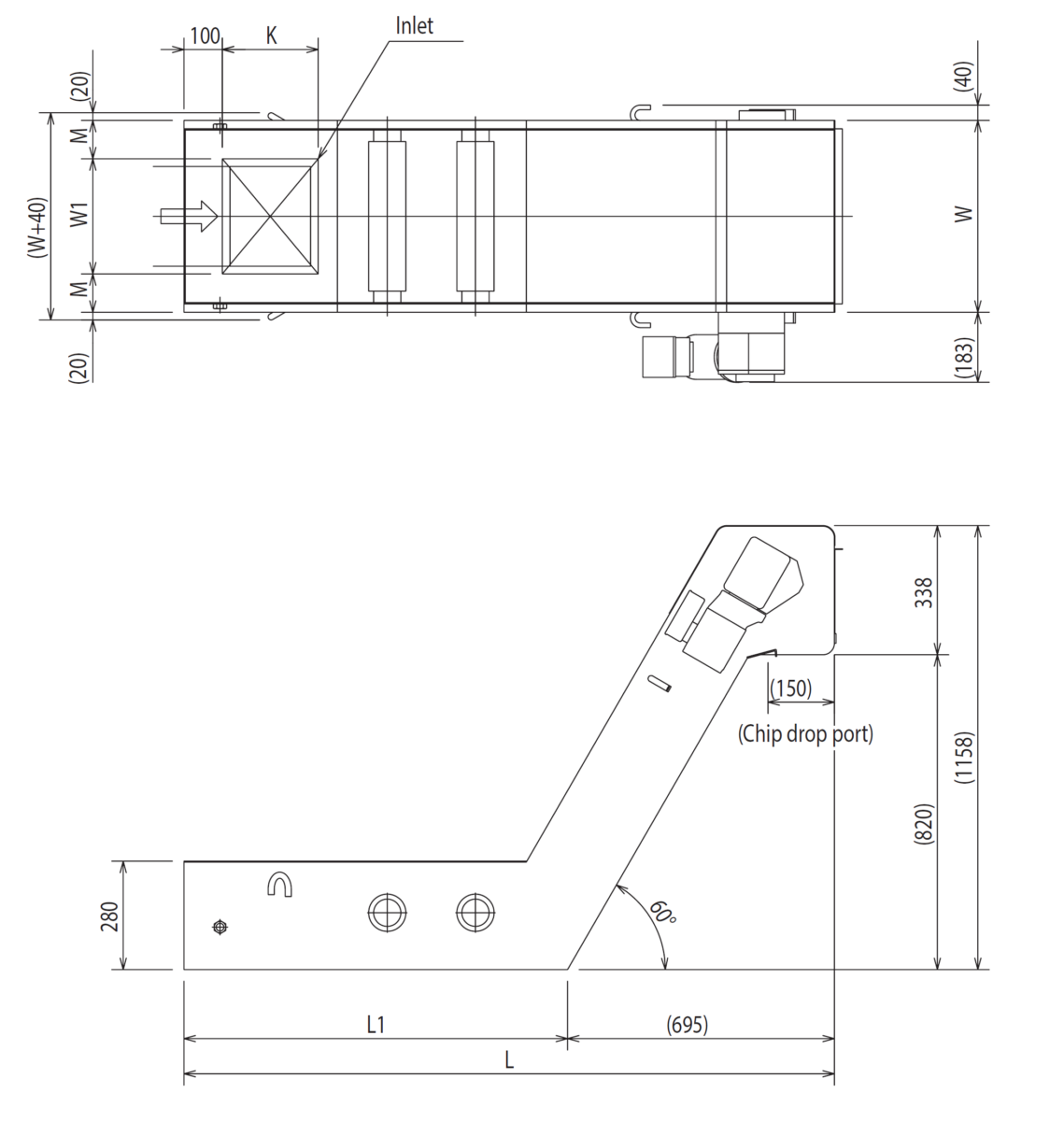

AL・ALL

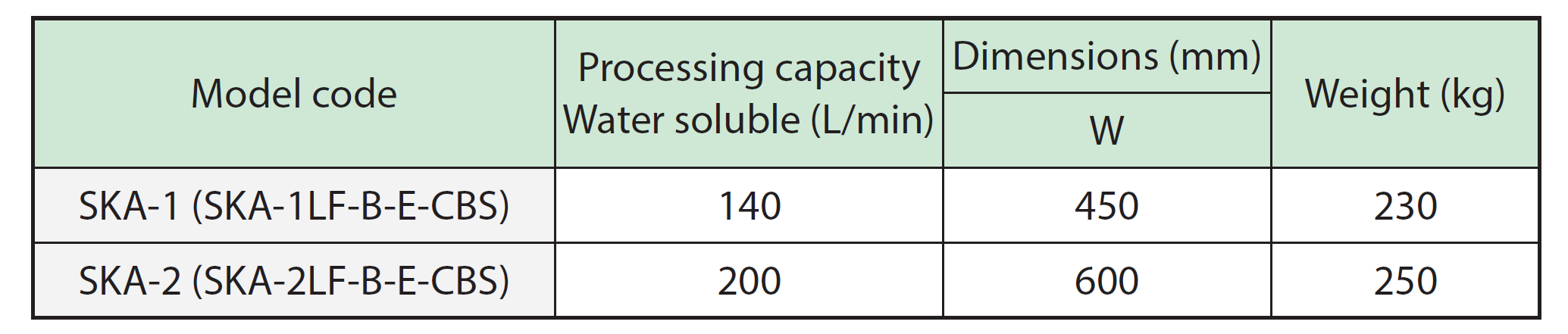

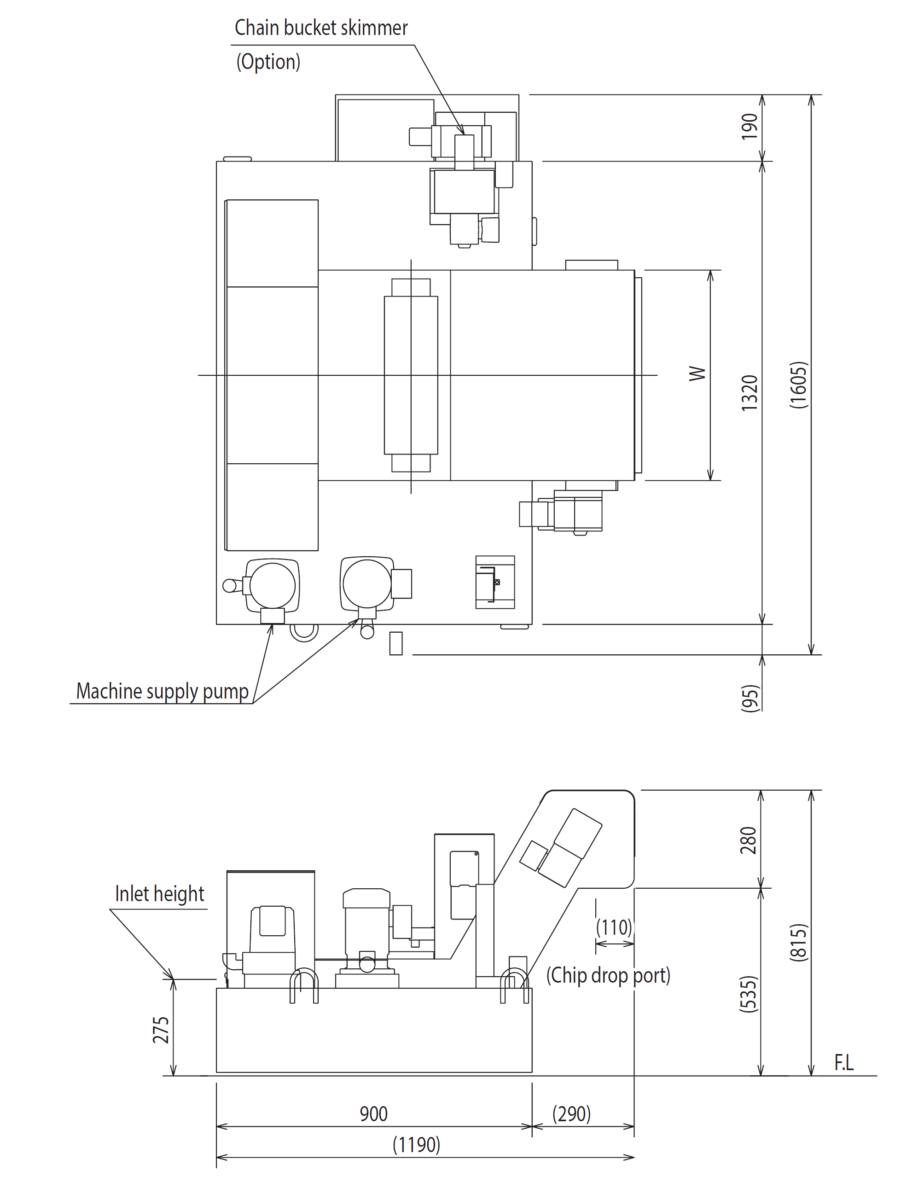

SKA

Filtration accuracy

• AL　200μm 90％ or more
• ALL　200μm 90％ or more
• SKA　400μm 80％ or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

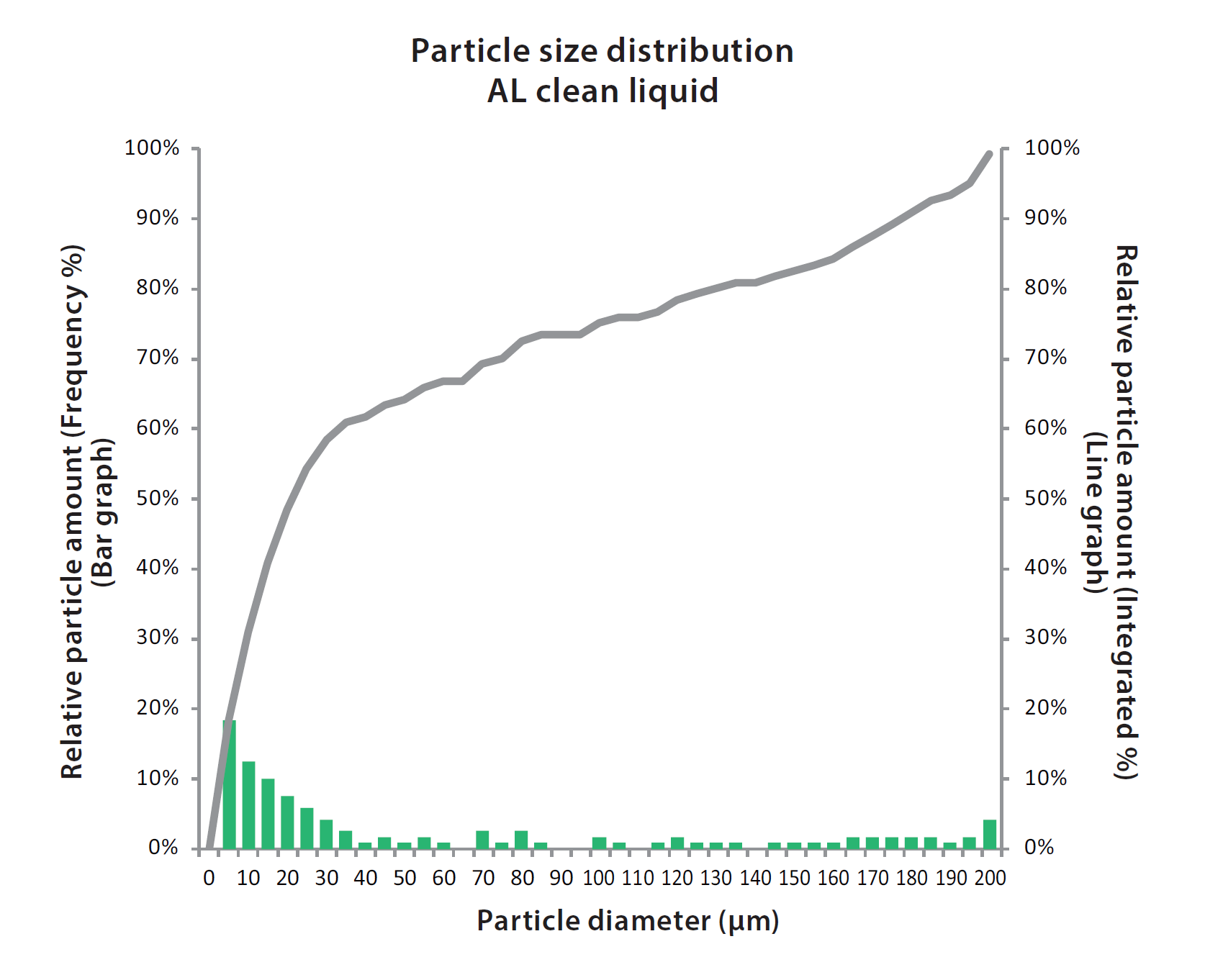

Sludge distribution status

Processing flow rate

Water soluble

• AL-1（AL35HLA-235（12-1））　100L/min
• AL-2（AL55HLA-250（12-2））　200L/min
• AL-3（AL55HLA-310（13-3））　300L/min



• SKA-2（SKA-2LF-B-E-CBS）　200L/min

Product weight

Water soluble

• AL-1（AL35HLA-235（12-1））　130kg
• AL-2（AL55HLA-250（12-2））　160kg
• AL-3（AL55HLA-310（13-3））　185kg



• SKA-2（SKA-2LF-B-E-CBS）　250kg

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Geared motor

• AL　100W
• SKA　25W

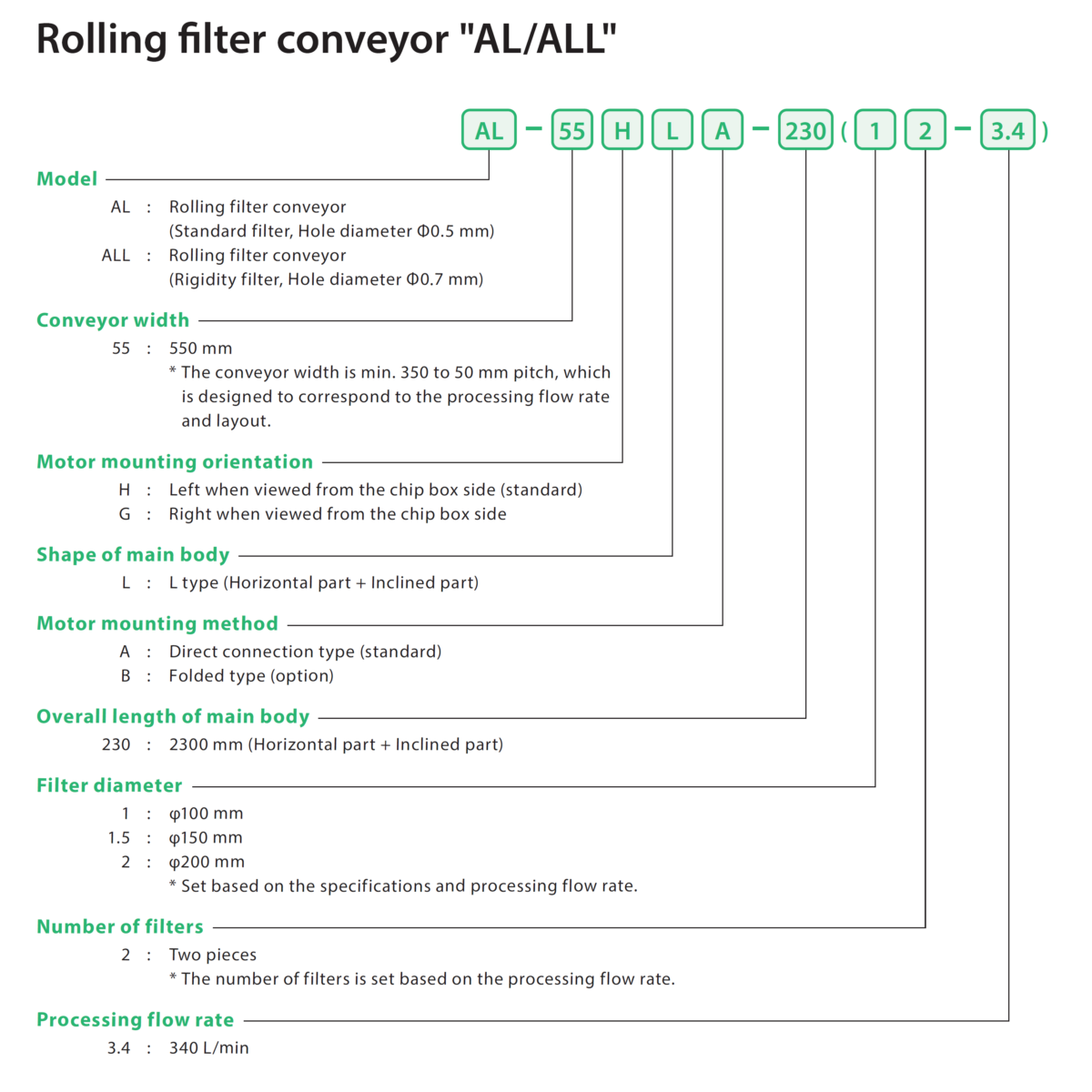

Model code

AL・ALL

* For SKA, please consult us.

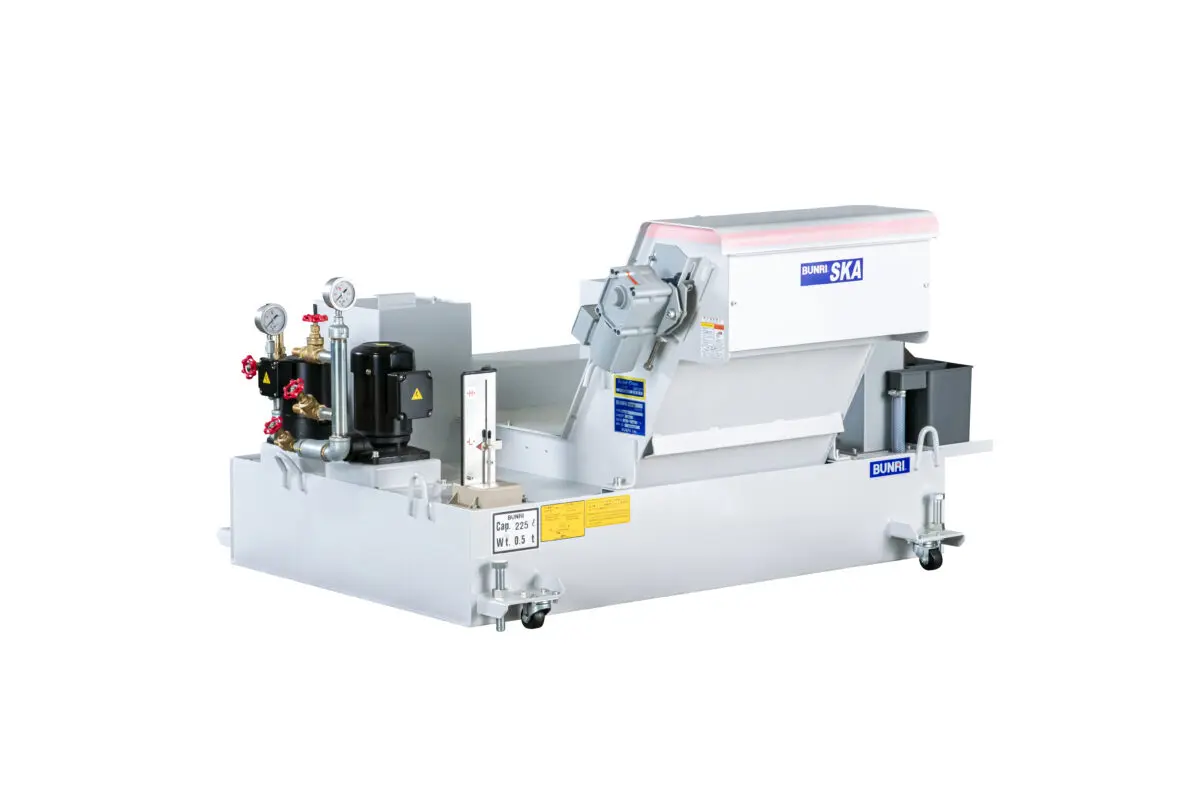

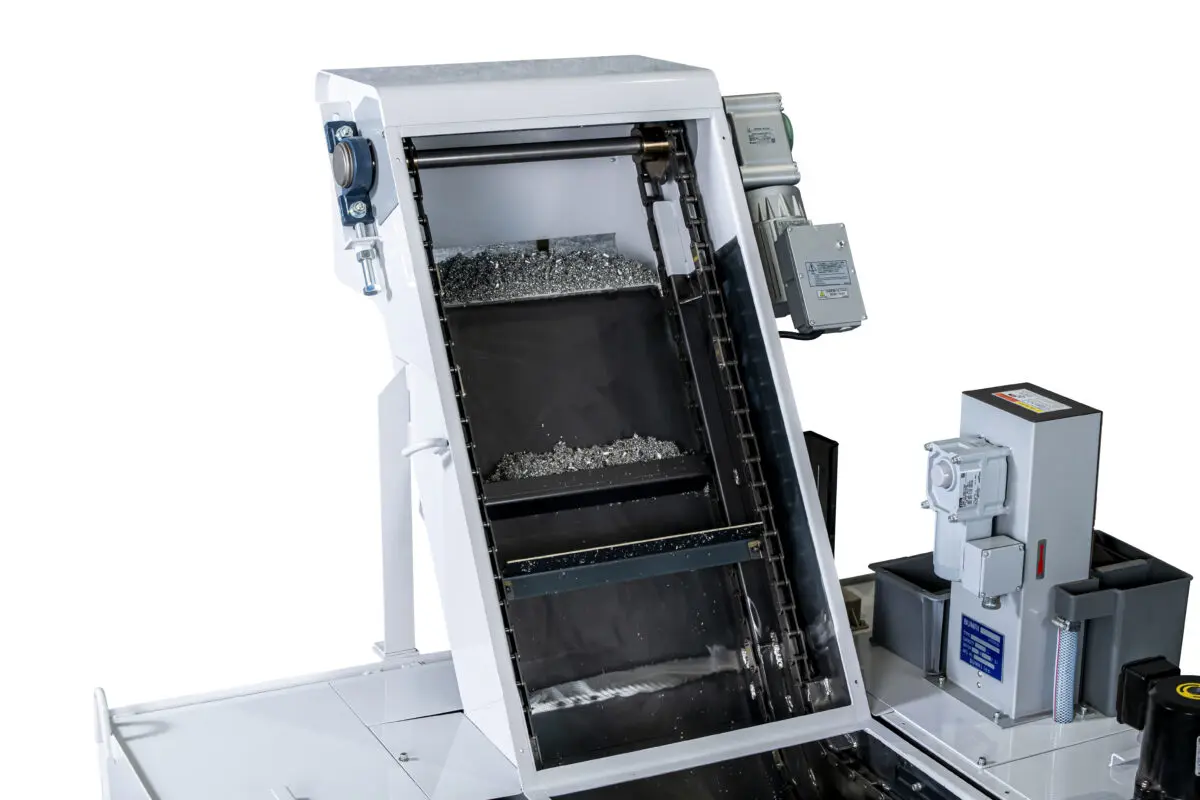

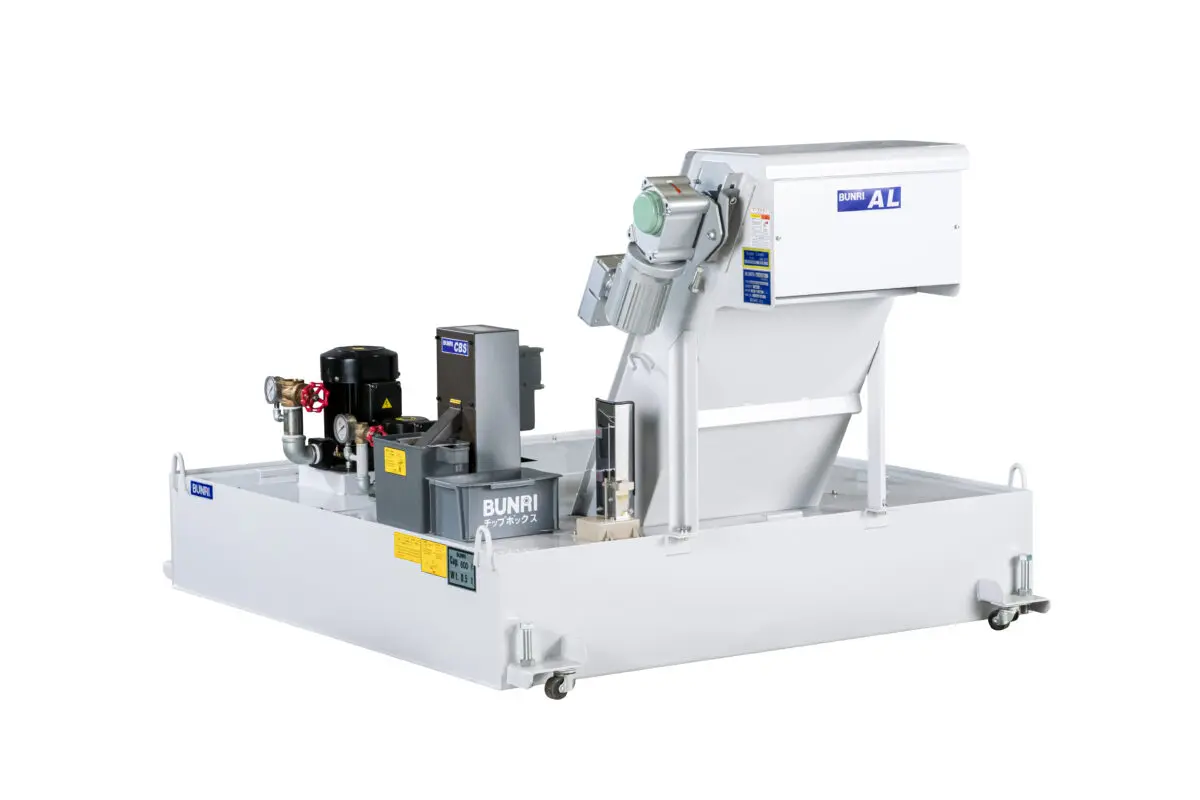

Product Photo (Example)

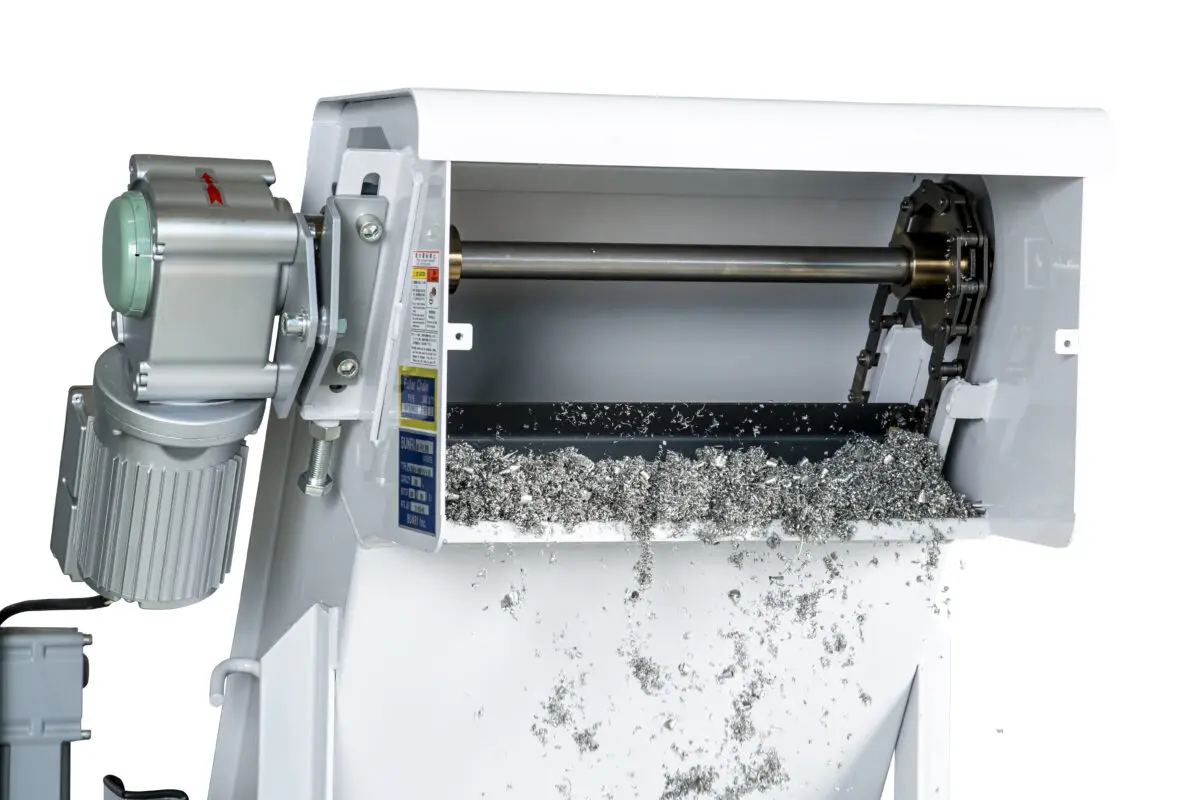

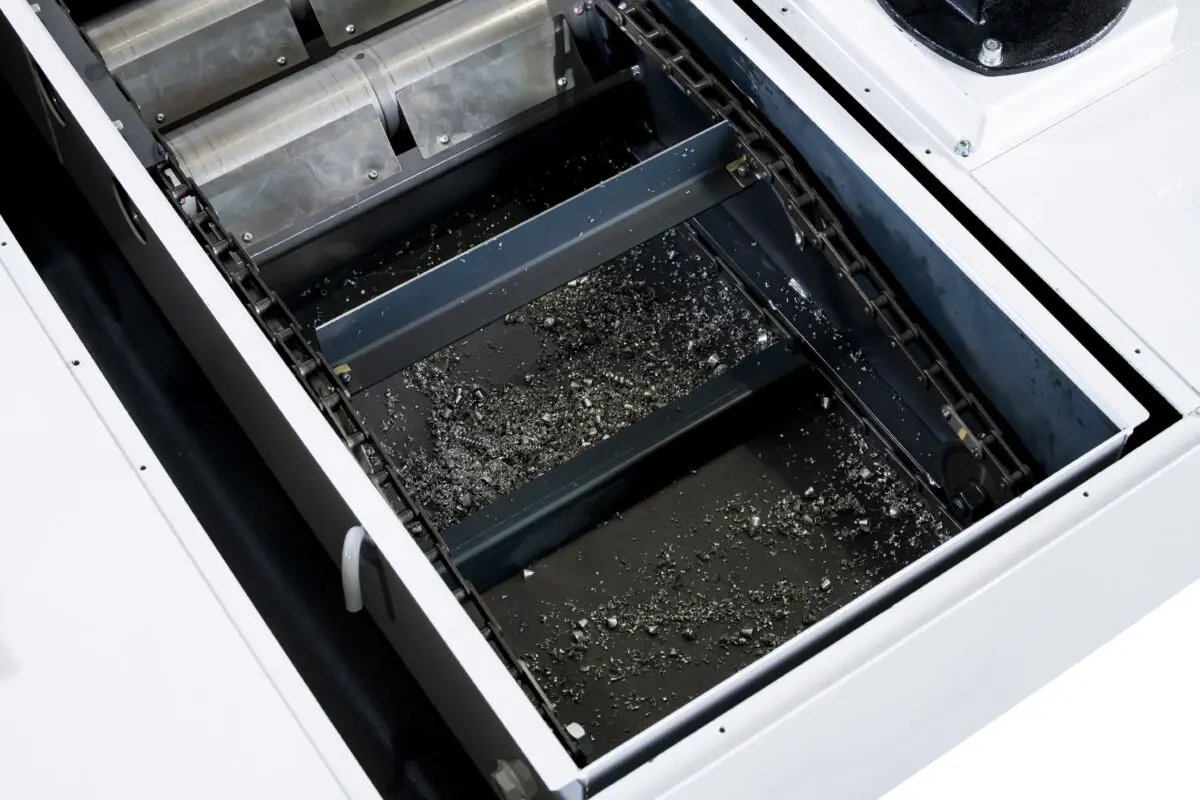

Chip discharge image

* Photos are product images for illustration purposes only. Specifications differ from the actual product.

---

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
