Phoenix NEO

Rolling Filter Conveyor MAL

Conveyor that supports both magnetic and non-magnetic materials with a combination of magnet and punching filter.
Optimum for those who process both magnetic and non-magnetic materials using a single machine tool.

Features

Coolant

Water soluble Oli-based

Category

Magnetic material

Processing Details

Cutting

Work Material

Mixed chips (aluminum + FC or sintered metal)

Chip Shape

Granular Small curl-shaped (50 mm or less) Small curl-shaped (51 mm to 100 mm)

Grinding Chip Size

Machine Tool

Machining center Cutting specialized machine Gun drill machine Broaching machine NC lathes Automation machine Gear cutting machine

Mechanism

PXK Sludge Distribution
PXH Sludge Distribution

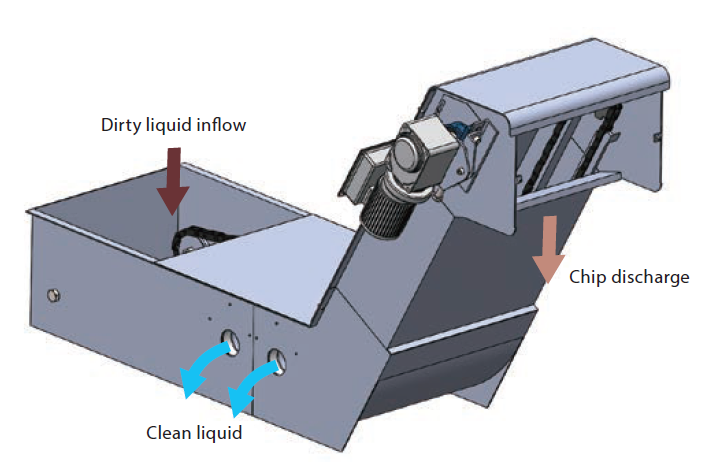

  1. The dirty liquid flows onto the conveyor.

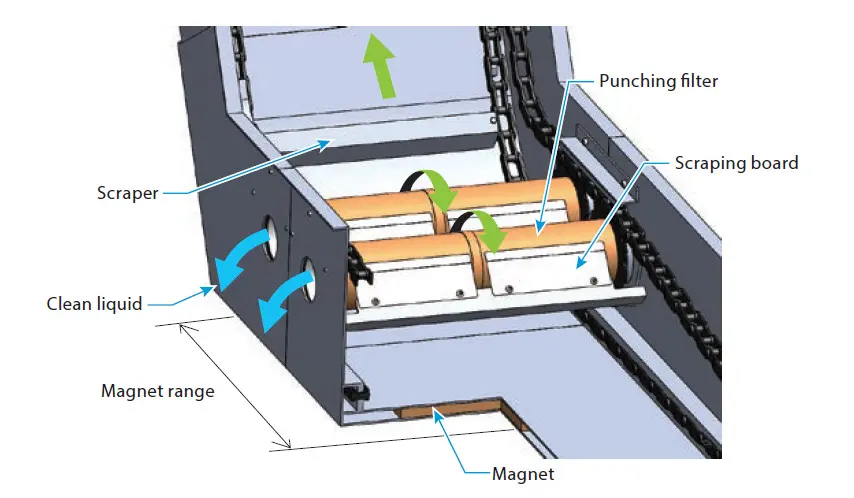

  2. Magnetic chips are captured by the magnet installed on the bottom of the conveyor.
  3. The dirty liquid is filtered when it passes through the rotating punching filter.The resultant clean liquid flows from the inside of the punching filter to the tank.
  4. Chips captured in the punching filter are scraped off by the scraping board and settle on the bottom of the conveyor.
  5. Magnetic chips captured by the magnet on the bottom of the conveyor and chips that have settled on the bottom of the conveyor are conveyed by the scraper.
  6. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

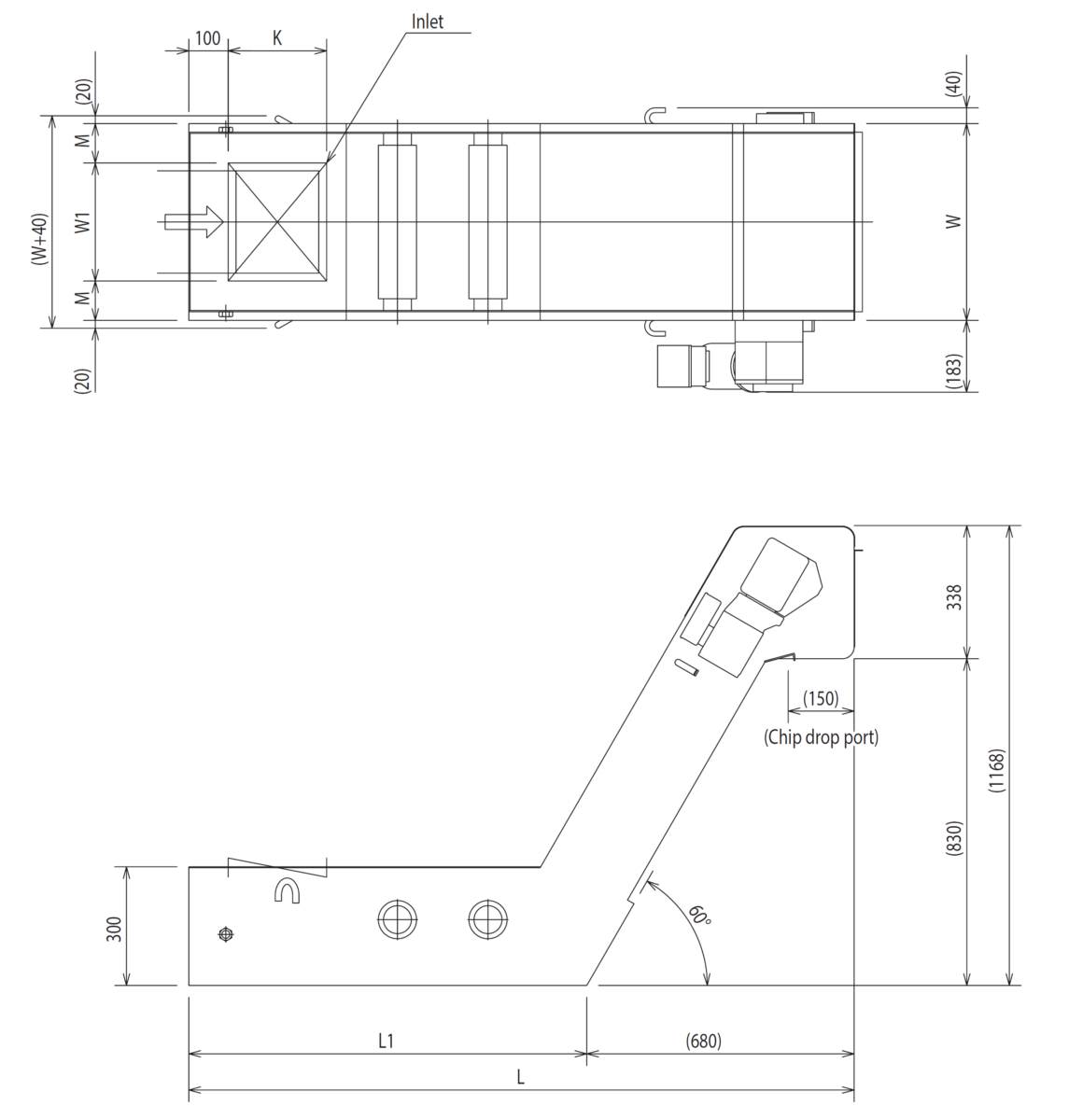

Dimensional drawing

PXK Sludge Distribution

Dimension table

PXH Sludge Distribution

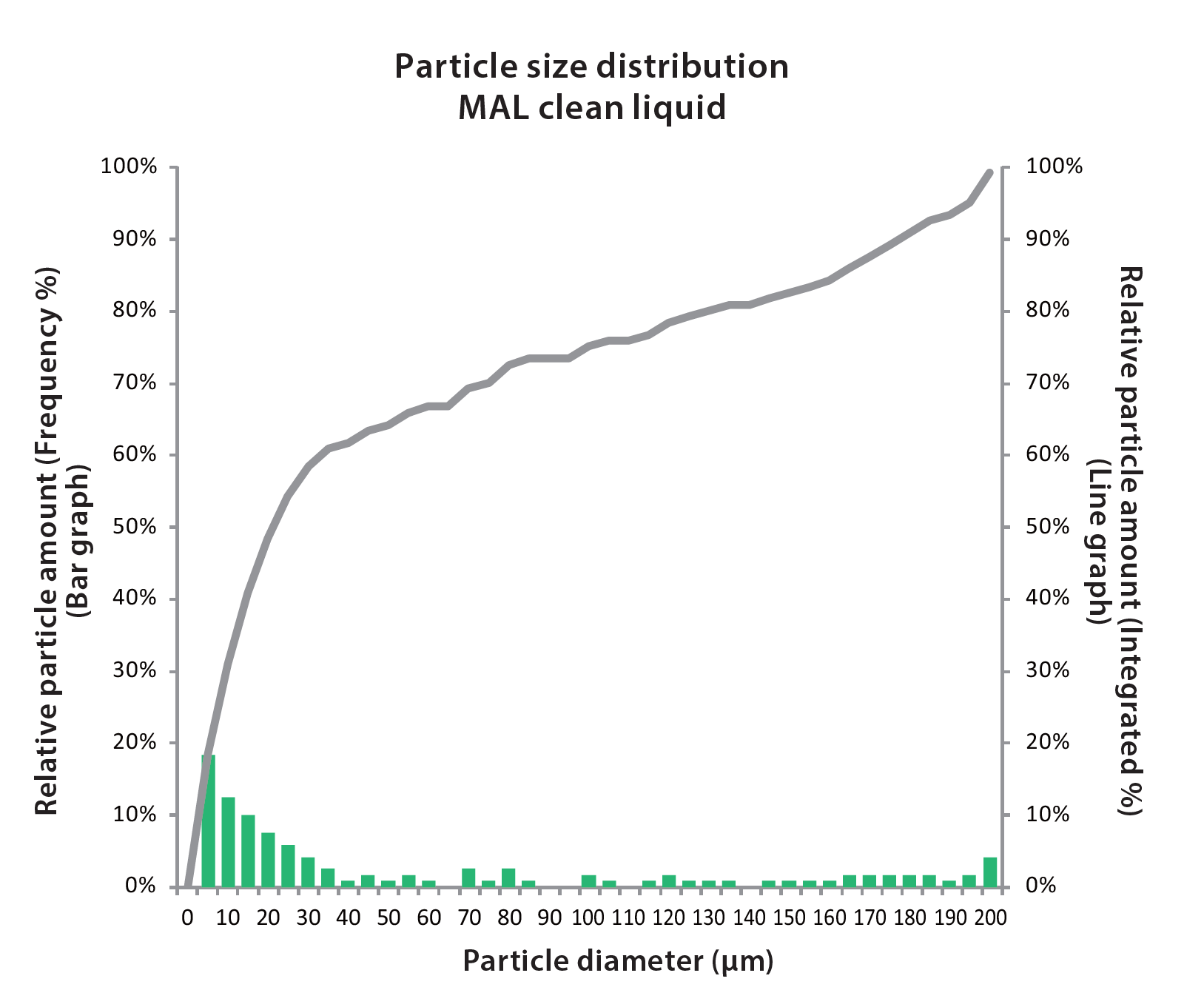

Filtration accuracy

200μm 90％ or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

Sludge distribution status

Machine tool: Machining center
Coolant: Water soluble
Processing flow rate: 700 L/min
Chip material: Aluminum

PXH Sludge Distribution

Processing flow rate

Water soluble

Product weight

Water soluble

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Geared motor

100W

Options

* Please contact us for details.

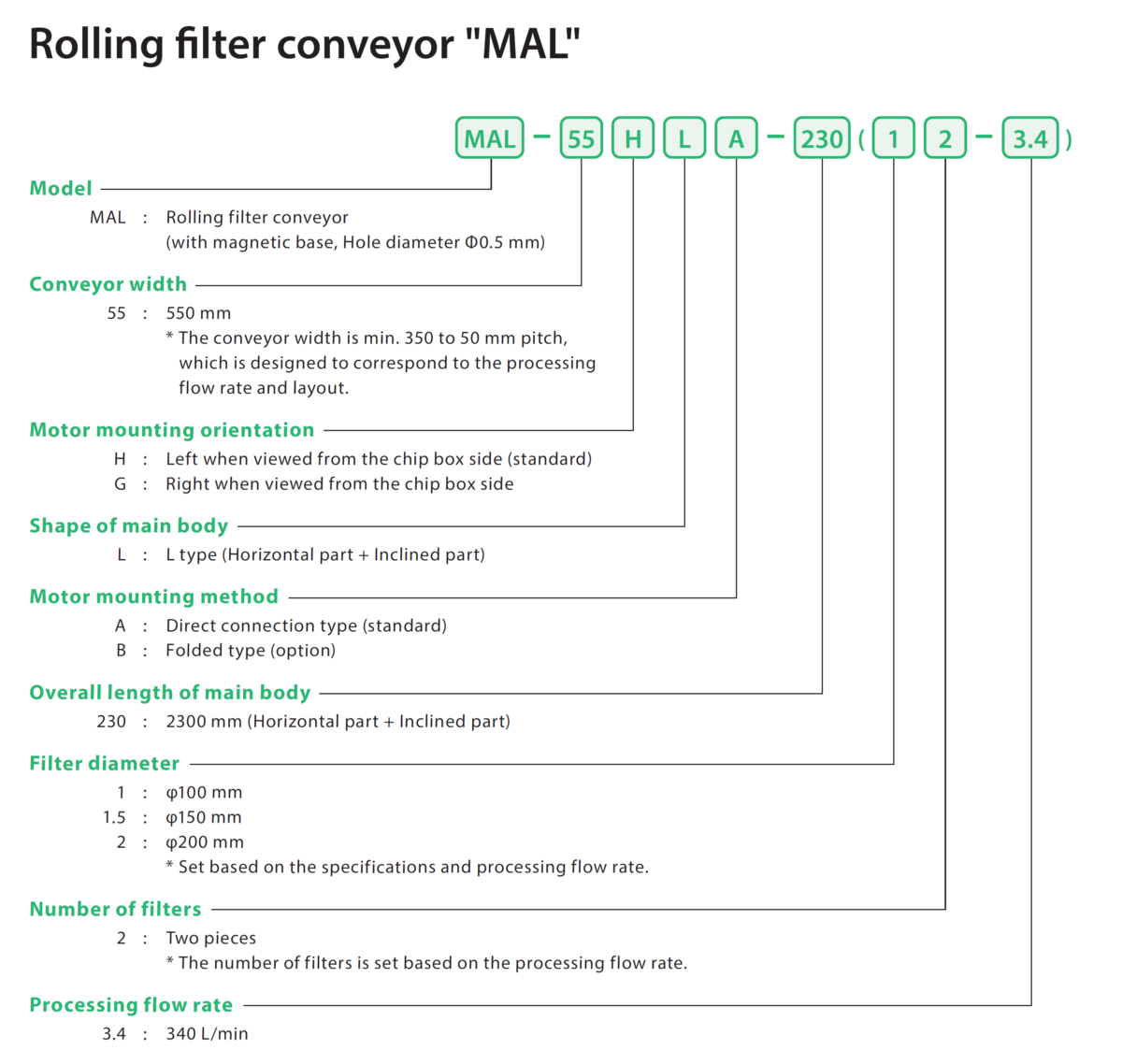

Model code

Comparison with Old Models Table

Product Photo (Example)

Option (CBS)

PXK Sludge Distribution

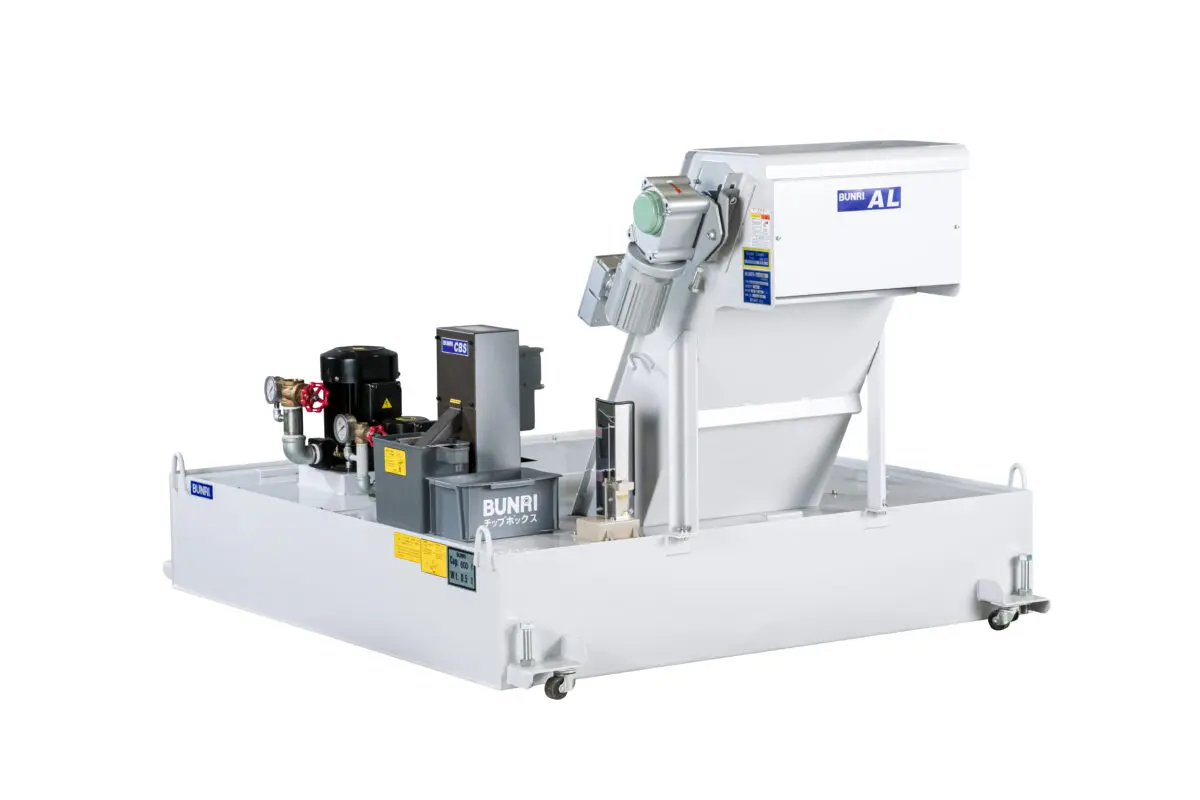

MAL and AL have the same appearance.

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
