Manual type Coolant Filtration System (C-CAT)

Features

Affordable prices with manual sludge discharge

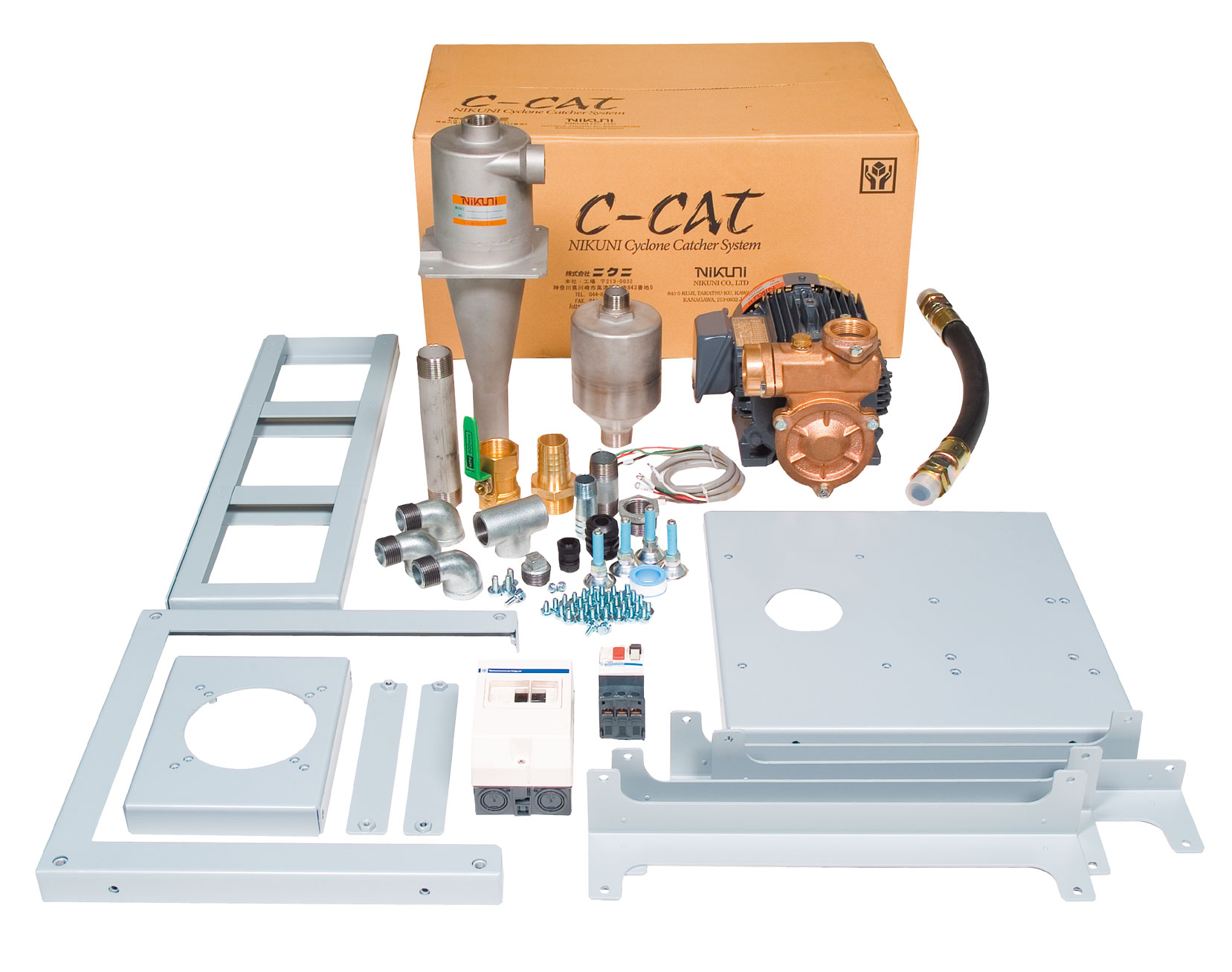

Kit Includes:

C-CAT Stand
Nikuni Coolant Pump
Nikuni VDF Cyclone
Sludge Pod
Manual Valve

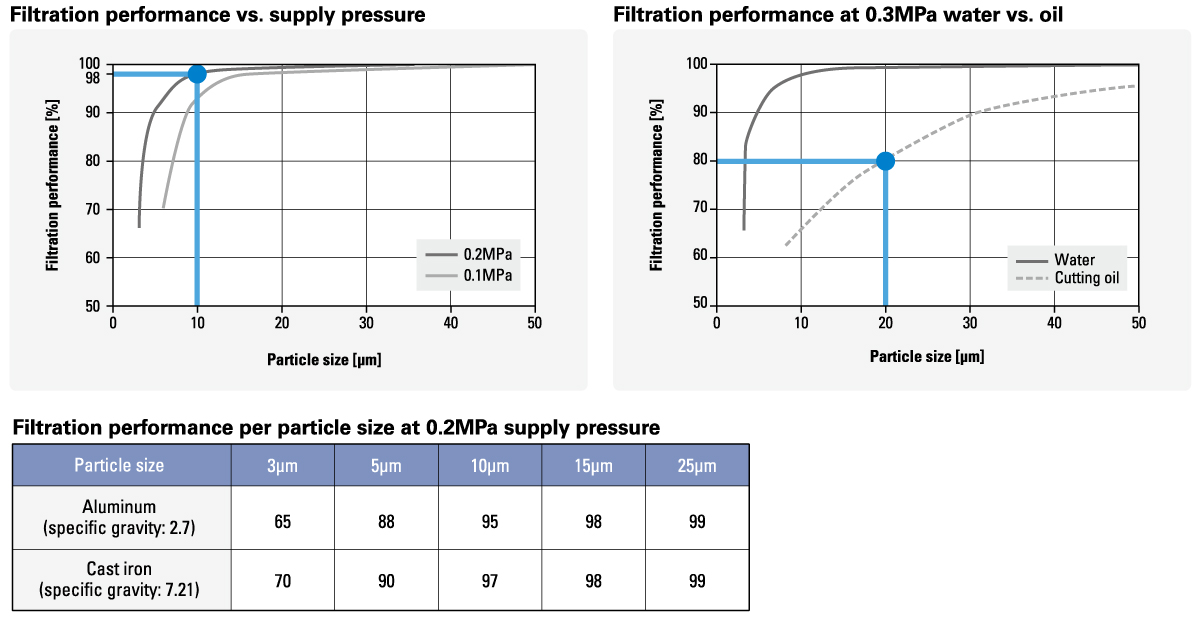

Performance

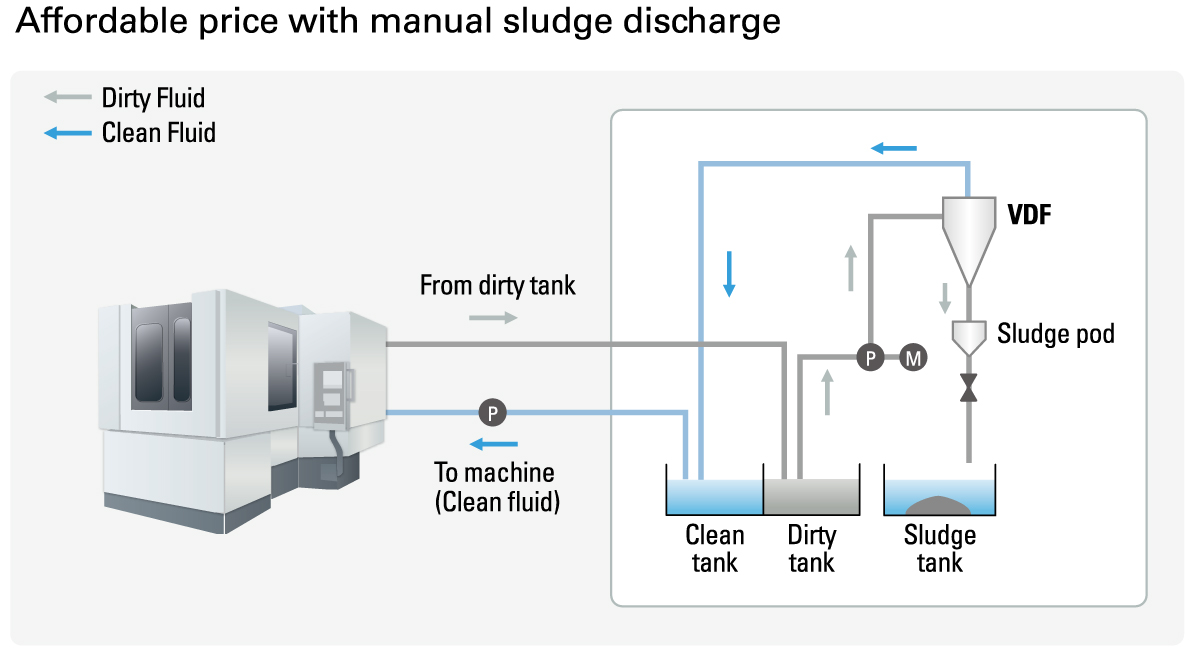

Mechanism Diagram 1

Specification Data

C-CAT-P C-SEL-P Capacity L/min (50Hz / 60Hz)
C-CAT M30-5/6 C-CAT M30K-5/6 26
C-CAT M50-5/6 C-CAT M50K-5/6 46
C-CAT M70-5/6 C-CAT M70K-5/6 68
C-CAT M100-5/6 C-CAT M100K-5/6 90
C-CAT M200VL-5/6 - 190
C-CAT M300VL-5/6 - 270
Mechanism Diagram 1

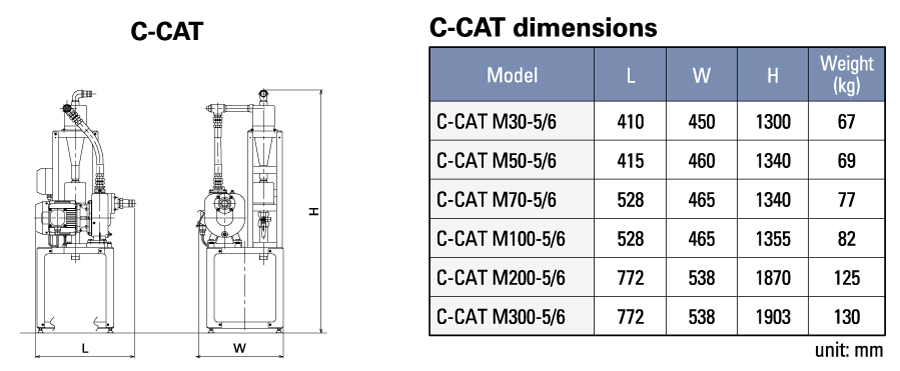

Dimensions

Mechanism Diagram 1
