Circulating water chiller for small machinery
Prevents temperature fluctuation
Easy operation
Starts operation automatically when fluid temperature exceeds the preset temperature, performing
automatically controlling temperature within a range of 2.5°C (36.5°F)
Compact and simple installation
Footprint is as small as 300 x 250 mm (~12x10 in.). Simple AC 100V power connection.
VSC 3100 can be installed easily on existing tanks.
Achieves enhanced yield and zero emission
Besides higher machining accuracy, proliferation of putrefying bacteria which can be a source of
unpleasant odors is prevented, the need of periodical fluid change is eliminated, and the work
environment is improved.

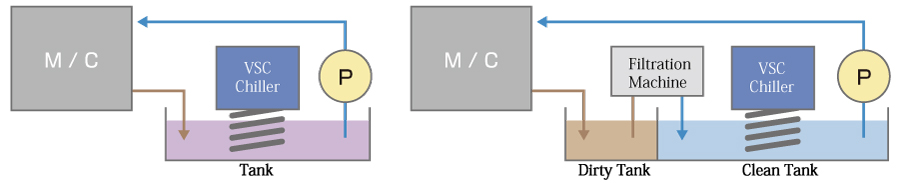

Note 1: More effective when installed above the current of the coolant
Note 2: Cooling performance decreases by 10% with oil-based coolant
Note 3: Functional with fluids for experimental equipment other than machine coolant, or fluid circulation units for demonstration machines and all types of equipment
