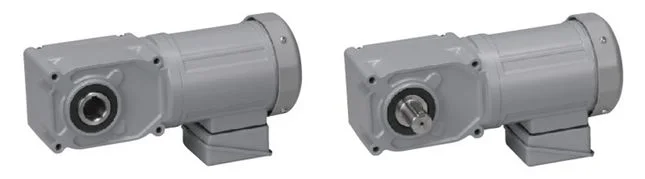

Concentric Right Angle Hollow Bore / Concentric Right Angle Shaft (F3)(0.1kW-2.2kW)

Features

High efficiency/Low noise
The high-ratio hypoid gear realizes high efficiency, low noise, and long service life by eliminating distortion caused by heat treatment by CBN grinding after heat treatment
Symmetrical double-sided installation
Freedom of Installation thanks to the concentric/double-sided flange
Face mount installation
The mounting holes on both sides have a tap
Long service life (seal)
A proprietary seal structure with a long service life is adopted

Motor Power		Reduction Ratio
3-Phase	1-Phase	Concentric Right Angle Hollow Bore (F3S)	Concentric Right Angle Solid Shaft (F3F)
0.1kW	100W	5 to 1500	5 to 240
0.2kW	200W	5 to 1200	5 to 240
0.4kW	400W	5 to 600	5 to 240
0.75kW	–	5 to 300	5 to 240
1.5kW	–	5 to 240	5 to 60
2.2kW	–	5 to 120	5 to 30

Gearmotor
Gearmotor with brake
Water-proof/Outdoor (IP65) gearmotor
Water-proof/Outdoor (IP65) gearmotor with brake
Reducer (double-shaft type)
S-Type Reducers (compatible with the specified motor)
The model with a motor capacity of 0.75kw-2.2kw is the high-efficiency IE3 gearmotor.
